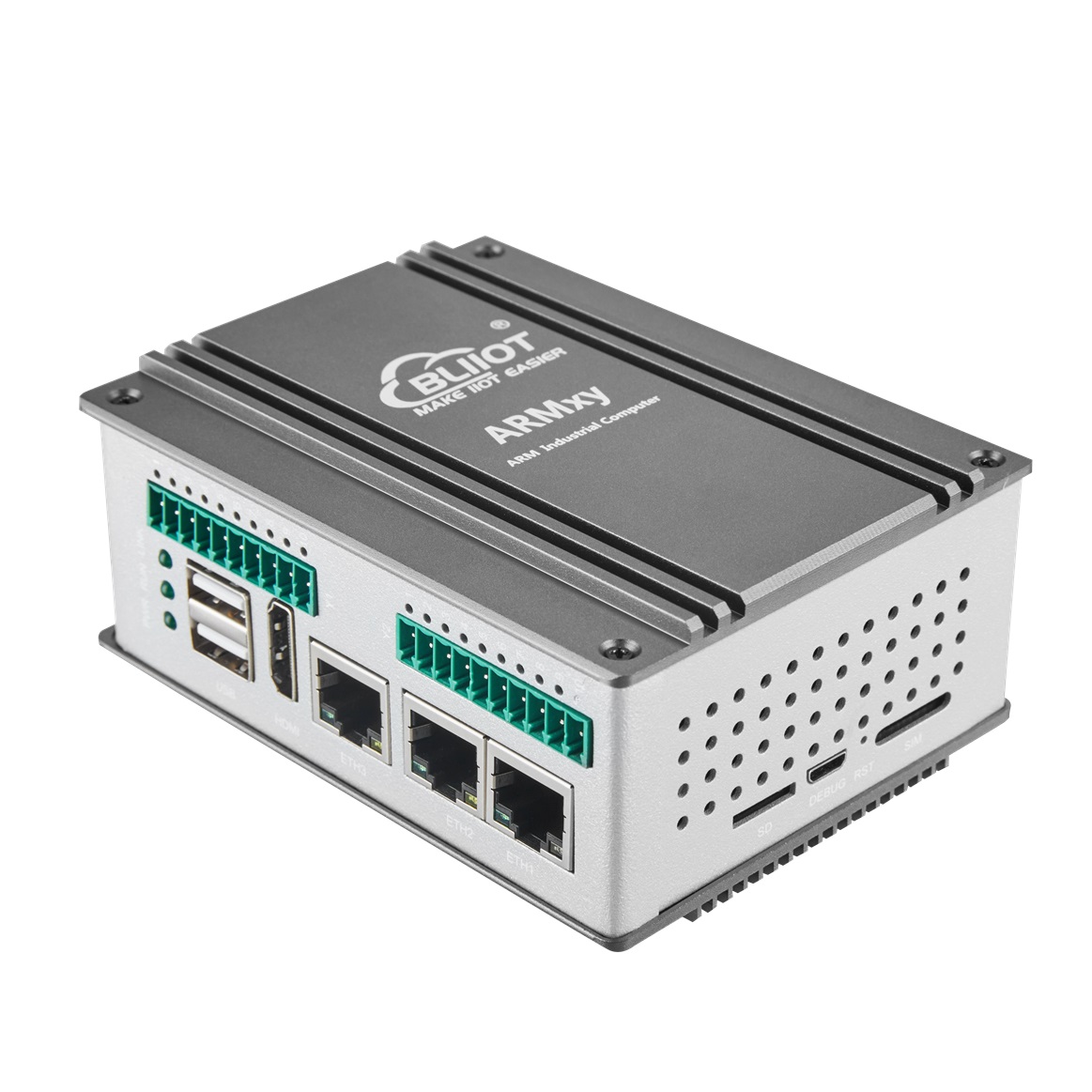

Beliai Technology officially unveils the ARMxy BL450 Series ARM AI Edge Box PC, powered by Rockchip RK3588 processors. This industrial-grade edge controller integrates high-performance computing, 6TOPS NPU acceleration, and extreme environmental robustness, delivering a full-stack solution for smart manufacturing, energy management, machine vision, and beyond.
Flagship Computing Architecture
Rockchip RK3588J/RK3588 Processor:
Quad-core Cortex-A76 (up to 2.4GHz) + Quad-core Cortex-A55 + Triple-core Cortex-M0
Integrated 6TOPS NPU supporting INT4/FP16 mixed-precision, compatible with TensorFlow/PyTorch frameworks
8K@60fps H.265 decoding & 8K@30fps encoding, Mali-G610 GPU enabling OpenGL/Vulkan graphics
Industrial-Grade Reliability
-40℃ to 85℃ operating range, certified to GB/T EMC & environmental standards
DIN rail mounting, aluminum alloy + stainless steel housing
Vibration/ESD protection (Level 3), 24V DC wide voltage input (9-36VDC) with reverse-polarity/overcurrent protection
Modular Expansion Ecosystem
Flexible I/O Configuration:
X-Series Boards: Configurable RS485/232, DI/DO, relays
Y-Series Boards: PT100 temp sensing, IEPE vibration, 4-20mA analog I/O
Dual USB 3.1, optional 1-3 Gigabit Ethernet ports, Mini PCIe for 4G/5G/WiFi
Multi-OS Support: Native Linux-RT real-time kernel, Ubuntu 20.04
Preloaded Industrial Stack:
BLIoTLink: One-click Modbus/OPC UA/IEC104 integration with AWS/Aliyun IoT
BLRAT: Remote diagnostics & maintenance tool
Built-in Node-RED, Docker, Qt 5.15.10 for rapid visual development
| Application Field | Solution |
|---|---|
| Smart Energy Storage | BMS/EMS real-time data & edge-cloud control |
| Machine Vision | 8K quality inspection + NPU defect detection |
| AGV Robotics | Multi-channel PWM control + SLAM mapping |
| Industrial IoT Gateway | Protocol conversion + edge AI (predictive maintenance) |
Cstomize via 4-segment naming:
Host Model-SOM Model-X Board-Y Board
Example:
BL450W-SOM451-X20-Y95
= Gigabit Ethernet + WiFi | 64GB eMMC + 8GB RAM | 4x RS485 | 4x PWM + high-speed pulse counting
Power Your Industrial AI Transformation
Rigorously tested (IP30, -40℃ cold start, 85℃ operation), the BL450 series offers global customization.
