The X13 is a 2-channel Dry Contact or Wet Contact digital input and 2-channel SINK digital output module, is one of the optional X series I/O modules in the ARMxy series rugged arm based computers.
It is widely used in industrial automation and control systems. To enhance system reliability and stability, the digital input module employs effective isolation technology to prevent interference between different signals, thereby protecting the integrity of equipment and data.
X13 is an industrial-grade expansion module specifically designed for the ARMxy series ARM embedded computers. The module features electrical isolation, overvoltage protection, ESD protection, fault protection, and overcurrent protection circuit designs, ensuring stability and reliability in complex industrial environments.
X13 provides 2 digital inputs (DI) and 2 digital outputs (DO), significantly expanding the I/O capabilities of the ARMxy series ARM embedded computers.

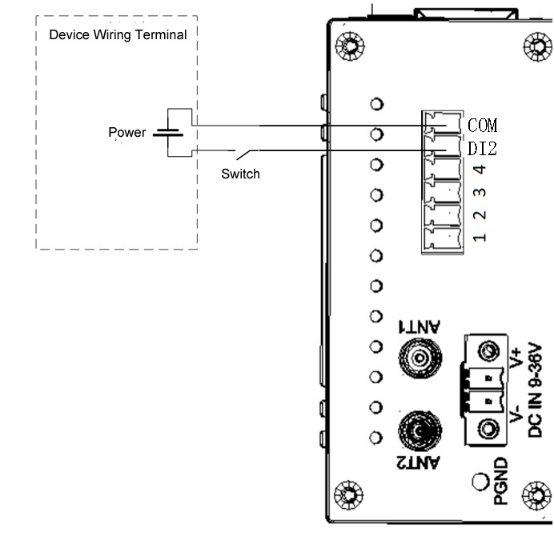

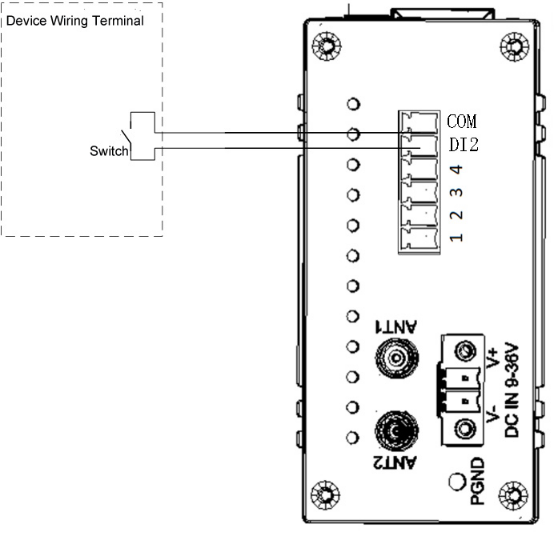

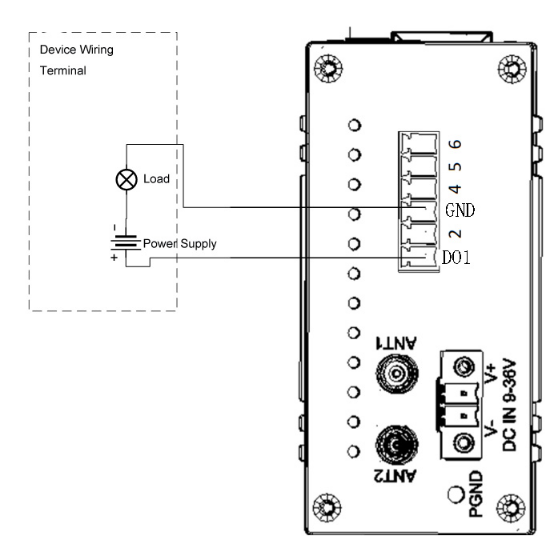

The 2 DI and 2 DO channels support electrical isolation, and the DI channels support dry or wet contact input.
|
Name |
Parameter |
Description |
|
Power Supply |
Operating Power |
Internal Voltage |
|
Working Voltage |
12V-24V |
|
|
Power Consumption |
1.5W |
|
|
Digital Output |
Channel |
2 channels |
|
Output Mode |
Single-ended output |
|
|
Output Type |
Active low output, output 0VDC |
|
|
Maximum Output Current per Channel |
100mA |
|
|
Isolation Protection |
2KVrms |
|
|
Digital Input |
Channel |
2 Channels |
|
Trigger Mode |
Low-level trigger or high-level trigger (optional) |
|
|
Dry/Wet Contact |
Optional |
|
|
Logic Level |
Logic “1”: +9 to +12VDC Logic “0”: -3 to +5VDC |
|
|
Isolation Protection |
2KVrms |
|
|
Certifications |
EMC |
IEC 61000-4-2 (ESD) Level 3 |
|
IEC 61000-4-4 (EFT) Level 3 |
||
|
IEC 61000-4-5 (Surge) Level 3 |
