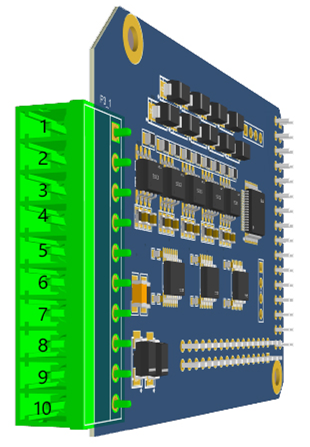

The Y51 2-channel RTD PT100 input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.

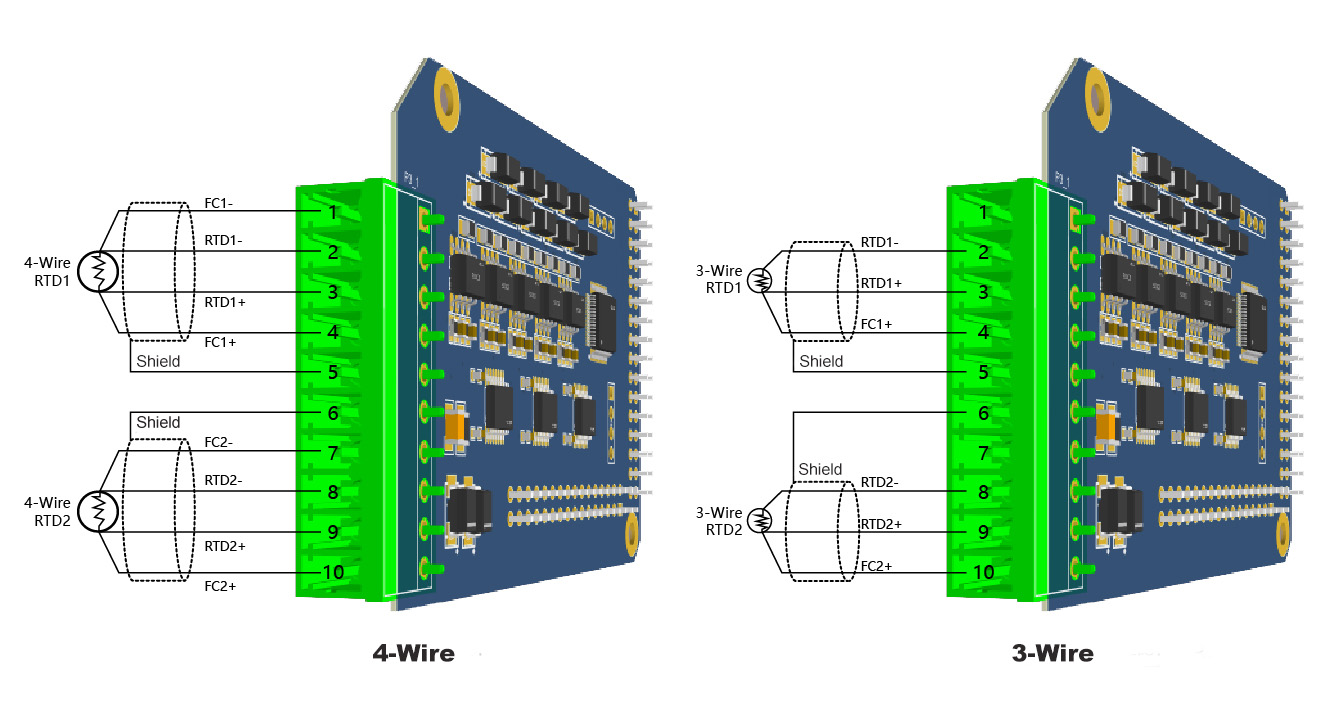

This module features 2 input channels, namely RTD1 and RTD2, which can connect to 3-wire PT100 sensors.
The input signal from each channel is electrically isolated, converted into a digital signal, and transmitted with 15-bit resolution.
The Y51 2-channel RTD PT100 input module is one of the optional Y series I/O modules in the IOy series and ARMxy series products.
| Name | Parameter | Description |
|---|---|---|
| Power Supply | Operating Power: | Internal voltage |
| Power Consumption: | 0.168W | |
| RTD Input | Channels: | 2 channels |
| Input Type: | 3-wire PT100 | |
| Measurement Range: | PT100 (-200~850℃) | |
| Resolution: | 15 Bit | |
| Accuracy: | ±1℃ (with AWG16 shielded wire within 20m) | |
| Conversion Rate: | 400 ms | |
| Certification | EMC | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 |
| No. | Name | Model | Channels | Signal Type |
|---|---|---|---|---|
| 1 | 2-Channel 3-Wire PT100 Input Module | Y51 | 2 | 3-Wire PT100 |
| 2 | 2-Channel 3-Wire PT1000 Input Module | Y52 | 2 | 3-Wire PT1000 |
| 3 | 2-Channel 4-Wire PT100 Input Module | Y53 | 2 | 4-Wire PT100 |
| 4 | 2-Channel 4-Wire PT1000 Input Module | Y54 | 2 | 4-Wire PT1000 |
