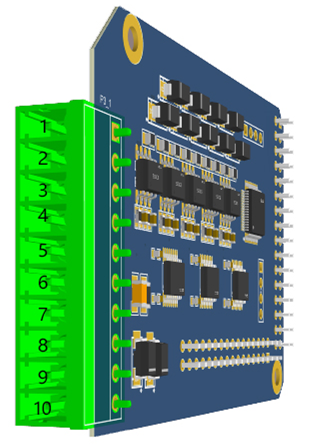

Y37 4CH 24-bit IEPE Measurement Input Module

No.Y37

Y37 4-channel IEPE input module, namely CH1, CH2, CH3, and CH4, is a signal acquisition module designed for IEPE sensors. It can collect acceleration, pressure, sound pressure and other signals.
Each channel can convert the high-impedance charge signal output by the sensor into a low-noise, low-impedance voltage signal and transmit it with 24-bit resolution.

Specifications

Name	Parameter	Description
Power Supply	Operating Power:	Internal voltage
Power Supply	Power Consumption:	0.12W
IEPE Input Module	Channel:	4 Channels
	Signal Input Range	±10V
	Coupling	AC coupling
	Excitation voltage	23V（Min.）
	Excitation current	3.5mA
	Resolution	24 bits
	Bandwidth	0.6Hz~20kHz
	Data Rate	144KSPS wideband filter per channel
	Signal-to-Noise Ratio (SNR)	＞100dB@1kHz
	Clock Frequency	27MHz
	Gain	0.4V/V
	Input Impedance	＞250kΩ
Certification	EMC	IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge)Level 3

Wiring

Name: Y37 4CH 24-bit IEPE Measurement Input Module
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: Y37
Price: 970.00 USD
Availability: InStock
Rating: 5 (1 reviews)
