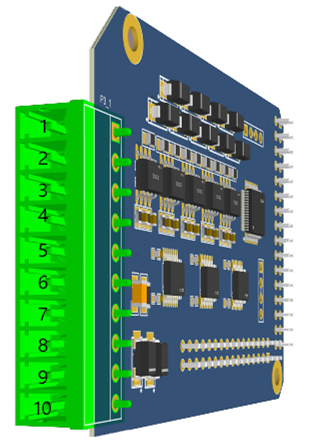

The Y95 4CH NPN High Speed Pulse Output and 4CH NPN High Speed Counter Module is one of the optional Y series I/O modules in the IOy series and ARMxy series ARM Embedded Industrial Computers.
The PWM pulse output supports a maximum frequency of 20KHz, and the pulse counting supports a maximum frequency of 50KHz.
The Y95 4CH NPN High Speed PWM Pulse Output and 4CH NPN High Speed Counter Module is one of the optional Y series I/O modules in the IOy series and ARMxy series ARM Embedded Industrial Computers.

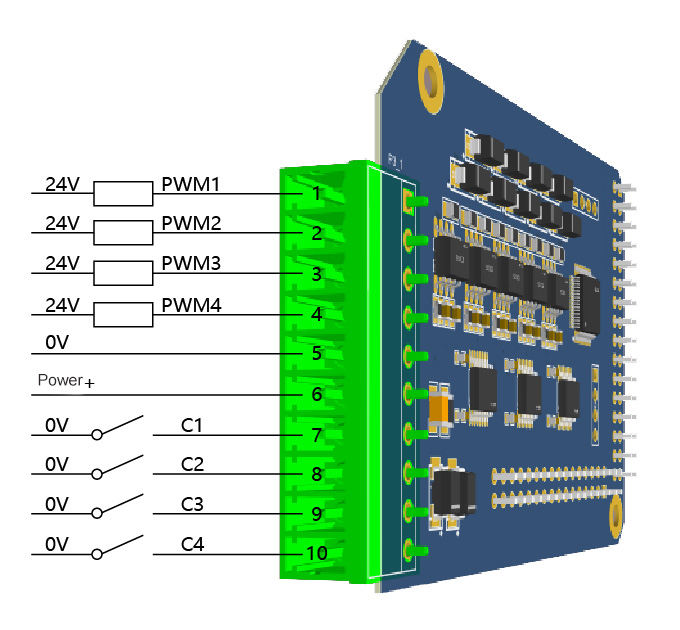

The PWM pulse output and counting module features 4 pulse output channels and 4 counting channels, namely PWM1…PWM4 and C1…C4.| Name | Parameter | Description |
|---|---|---|
| Power Supply | Operating Power: | Internal voltage |
| Power Consumption: | 0.48W | |
| Pulse Output and Counting Module | Pulse Output Parameters | |
| Channels: | 4 channels | |
| Output Delay: | <1ms | |
| Duty Cycle: | 0~100, customizable | |
| Maximum Switching Frequency: | 20KHz | |
| Isolation Protection: | 2KVrms | |
| Pulse Counting Parameters | ||
| Channels: | 4 channels | |
| Maximum Switching Frequency: | 50KHz | |
| Counting Range: | 32-bit unsigned | |
| Isolation Protection: | 2KVrms | |
| Certification | EMC | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 |
