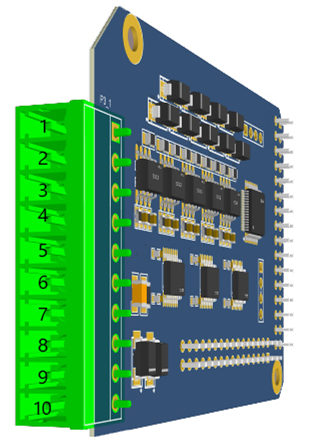

The Y63 is an industrial-grade serial port module specifically designed to expand the capabilities of the ARMxy series ARM embedded industrial computers. It features electrical isolation and provides 4 RS485 or RS232 interfaces, significantly enhancing the performance of the ARMxy series ARM embedded industrial computers.
The Y63 serial port module supports baud rates from 1200 to 115200BPS and Full-duplex / Half-duplex communication modes. It can operate stably in harsh environments and is widely used in industrial automation and control systems.
The Y63 is an industrial-grade serial port module specifically designed to expand the capabilities of the ARMxy series ARM embedded industrial computers. It features electrical isolation and provides 4 RS485 or RS232 interfaces, significantly enhancing the performance of the ARMxy series ARM embedded industrial computers.
| Name | Parameter | Description |
|---|---|---|
| Power Supply | Operating Power: | Internal voltage |
| Power Consumption: | 0.48W | |
| 4-Channel RS485/RS232 Optional Module | Channels: | 4 channels |
| Mode Selection: | 4 RS232 or 4 RS485 | |
| Baud Rate: | 1200, 9600, 115200, 2400, 4800, 38400, 57600, (customizable for the same product) | |
| Effective Transmission Distance: | RS232: 15 meters RS485: 1000 meters |
|
| Working Mode: | Full-duplex / Half-duplex | |
| Data Transmission Mode: | RS232: Transmit/Receive mode, Receive mode, Transmit mode RS485: Transmit/Receive mode, Receive mode, Transmit mode |
|
| Maximum Output Current per Channel: | 200mA | |
| Isolation Protection: | 2KVrms | |
| Certification | EMC | IEC 61000-4-2 (ESD) Level 3 IEC 61000-4-4 (EFT) Level 3 IEC 61000-4-5 (Surge) Level 3 |
