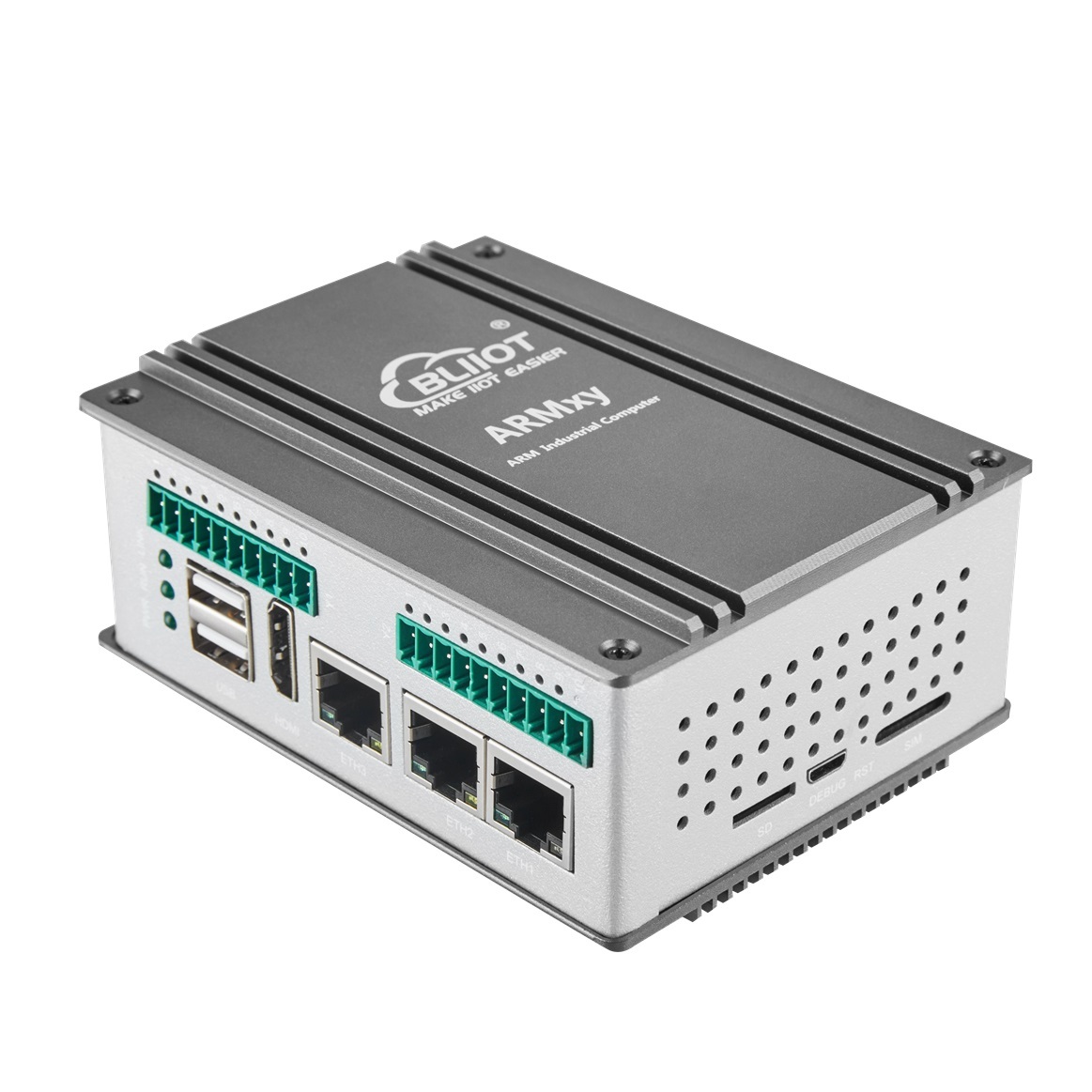

The BL340 series of ARM embedded computers from the ARMxy series is a cost-effective, industrial-grade ARM edge computing gateway with flexible IO port and SoM configuration capabilities. It is suitable for industrial edge computing, industrial control, smart terminals, and industrial IoT gateways. Based on the Allwinner T507-H processor, the BL340 series features a quad-core ARM Cortex-A53 architecture with a maximum frequency of 1.4GHz, paired with 8/16GB eMMC storage and 1/2GB DDR4 memory, meeting the requirements of most applications.

Core Features

1. SoM is Optional;

2. I/O Ports are optional

3. Industrial-Grade Reliability

             Industrial Control                                               Energy Storage Systems EMS/BMS
             Industrial PLCs                                                   Edge Computing Gateways
             Electric Vehicle Charging Stations                   Blood Analyzers
             Smart Manufacturing                                         Communication Management Systems
             Testing Instrumentation                                     IoT Devices and Smart Devices

The BL340 series ARM embedded computer has undergone professional electrical performance design and high/low-temperature testing, ensuring high stability and reliability. It supports DIN35 rail mounting and can adapt to various industrial application environments. This series is widely used in industrial IoT, edge computing gateways, photovoltaic power generation and energy storage systems, automation control, ARM IoT Devices, and other fields.

Product Selection Guide

The ARMxy series ARM embedded controller adopts a flexible design concept, which can flexibly select different SOM boards to achieve different ROM and RAM combinations, and use different X boards and Y boards to achieve rich IO combinations to meet the needs of various application scenarios.

The product naming rules are as follows:

Host Model-SOM Model-X Board Model-Y1 Board Model-Y2 Board Model

Examples:

• BL340-SOM341-X10
  Indicates:

  • 1 Ethernet port

  • 16GB eMMC

  • 2GB DDR4

  • 2 RS485 channels

• BL340W-SOM341-X10
  Indicates:

  • Includes WiFi functionality (denoted by "W")

• BL340L-SOM341-X10
  Indicates:

  • Includes 4G module functionality (denoted by "L")

This flexible naming and configuration system ensures that the ARMxy series can be tailored to specific application needs, whether for industrial control, IoT, or other embedded applications.

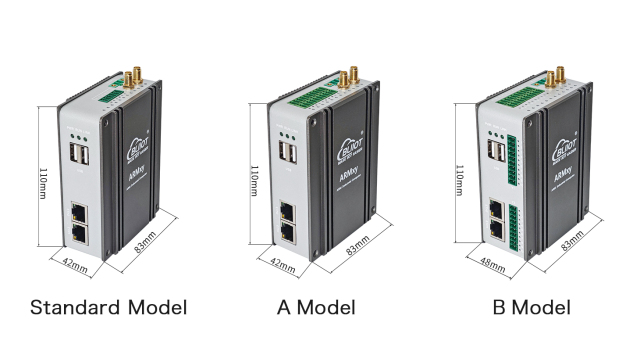

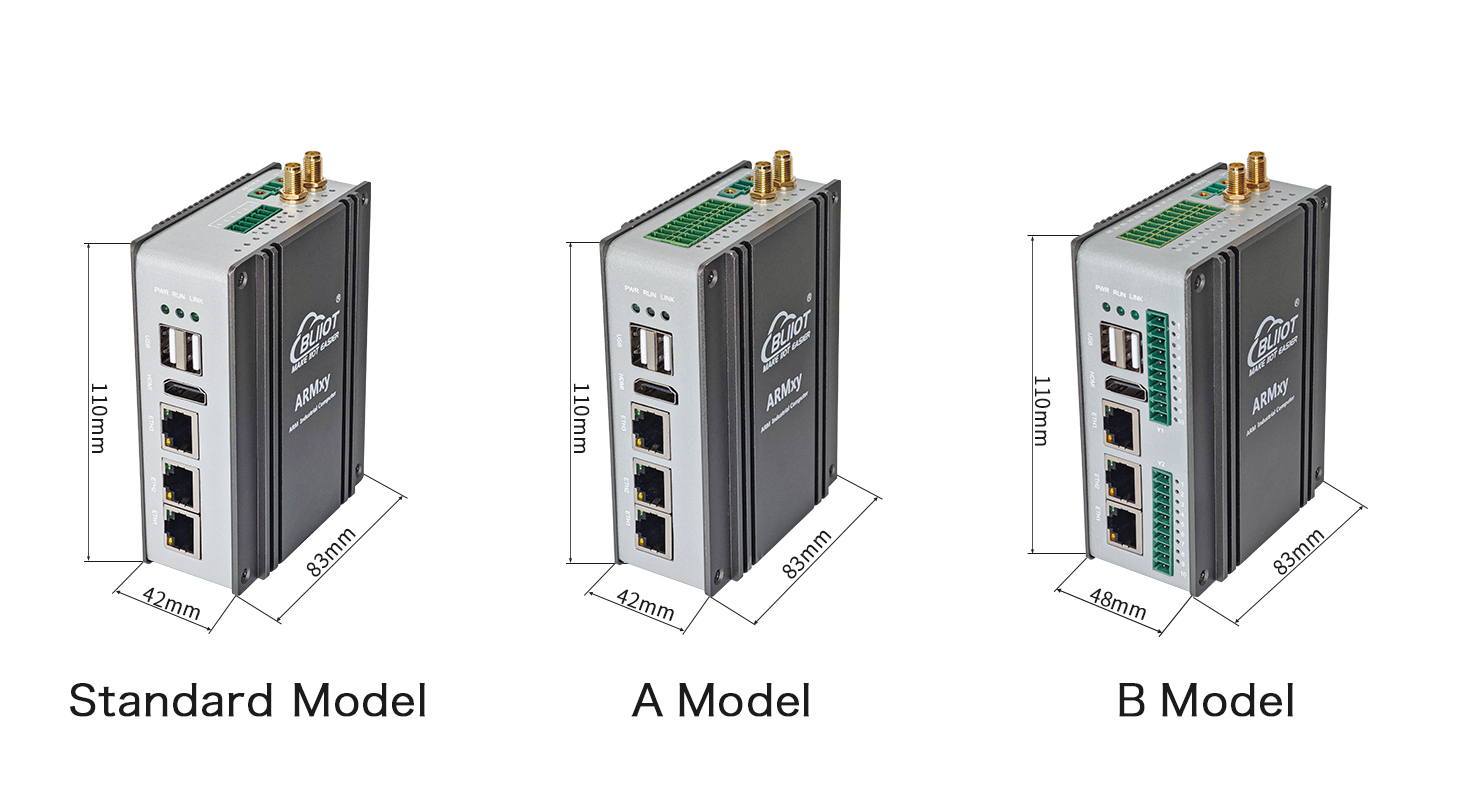

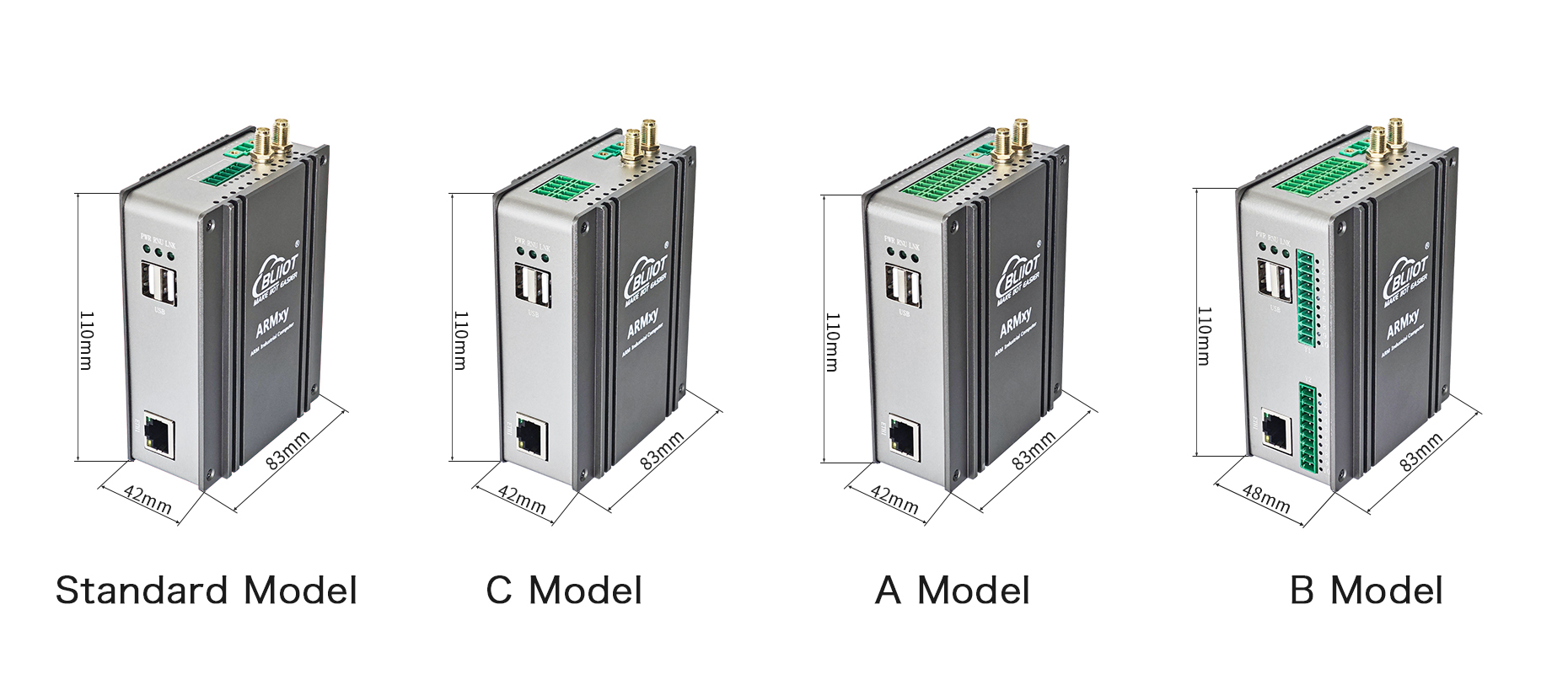

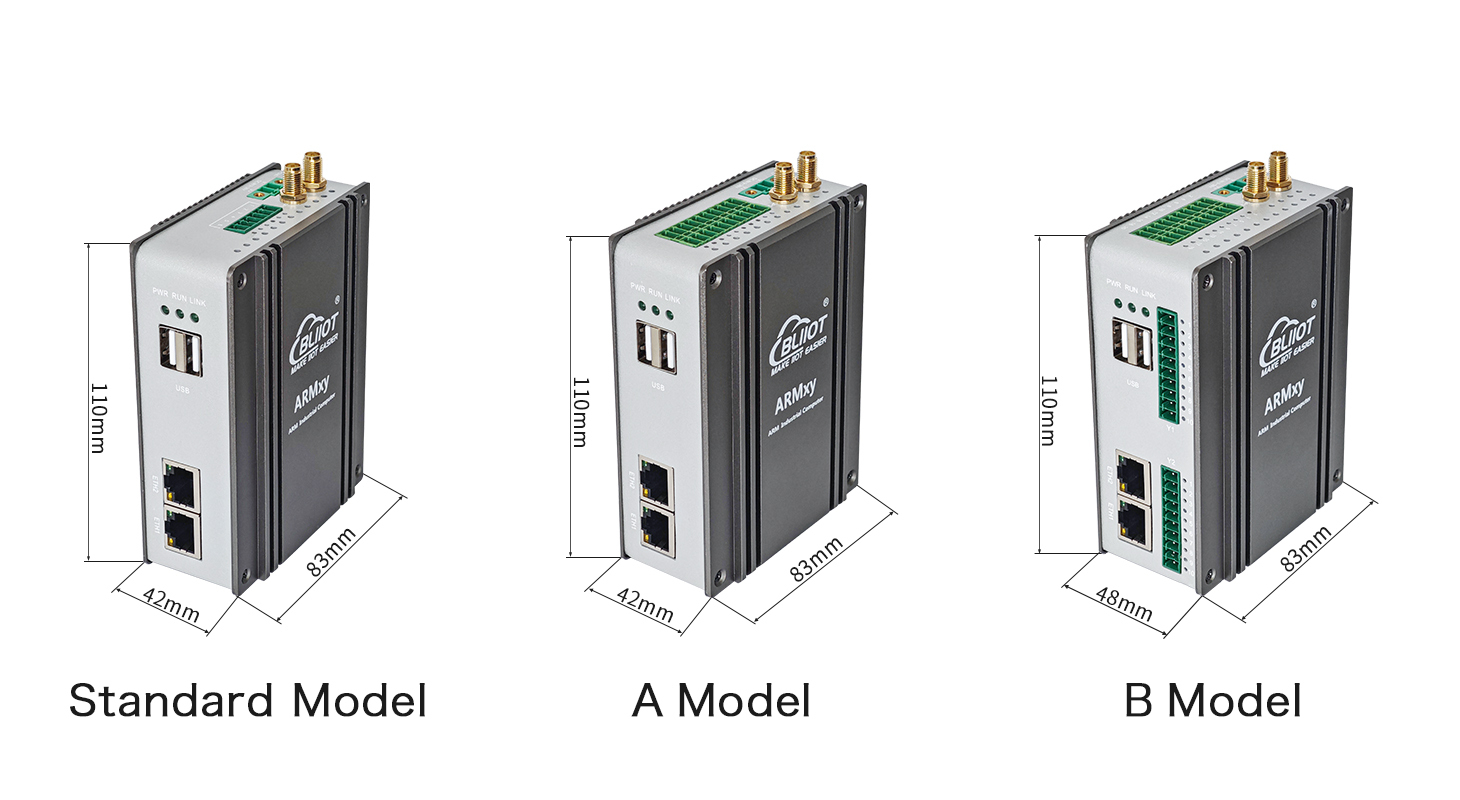

ARMxy BL340 Series Model List:

Below is a table summarizing the key specifications of the BL340 series ARM embedded controllers:

ARMxy BL340 Series SOM Selection Table

Y Series IO Board Selection Table

You can choose the appropriate Y series IO board according to your requirements. The Y series IO modules are compatible with all Y slots.

Comaptible EMC EMI Standards

Below is a summary of the Electromagnetic Compatibility (EMC) test results for the BL340 Series ARM Embedded Computer, including detailed information on electromagnetic emissions and immunity tests:

1. Electromagnetic Emissions Tests

2. Immunity Tests

Environmental Adaptability Testing

Below is a summary of the environmental adaptability tests conducted on the BL340 series ARM embedded controllers, ensuring their reliability and performance in various industrial conditions:

Shipping Packaging

• One ARM embedded controller

• One set of DIN35 mounting bracket

• Pre-installed BLIoTLink software

• Pre-installed BLRAT software

• Ubuntu file system

• Crimp-free terminals configured according to selected accessories

• When WIFI or 4G modules are purchased, WIFI and 4G module antennas will be included.



 Technical Support & Services

We offer comprehensive technical support and services to ensure a smooth development and deployment experience for our products. Below are the key services provided:

1. Development Resources

• System Images & Source Code:

  • Provide system firmware images, file system images, kernel driver source code, and a variety of demo programs.

• Platform Development Kit:

  • Offer a complete platform development package and beginner tutorials to save software integration time and simplify application development.

2. Rich Development Cases

We provide a wide range of development cases to make application development easier and more efficient. These include:

• Linux & Linux-RT: Application development cases.

• BLIoTLink: Industrial protocol collection and cloud platform integration cases.

• BLRAT: Remote access and usage cases.

• Node-Red: IoT application development cases.

• Docker & MQTT: Container technology and communication protocol cases.

• Baremetal & RT-Thread (RTOS): Baremetal and real-time operating system development cases.

• Inter-core Communication Cases between Cortex-A53 and Cortex-M4F

• Graphical Interface Development Tool: Qt-5.12.4 Software Development Kit

• Ubuntu Operating System Demonstration Cases

• 4G/WiFi/Bluetooth: Communication module development cases.

• HDMI Multimedia Display: Multimedia display development cases.

3. Custom Development & Production

• Assist with product secondary development to meet specific requirements.

• Provide custom R&D and production services tailored to your needs.

4. Long-Term After-Sales Support

• Offer long-term after-sales services to ensure the continued performance and reliability of your products.

Our goal is to provide end-to-end support, from development to deployment, ensuring your success with our products.
