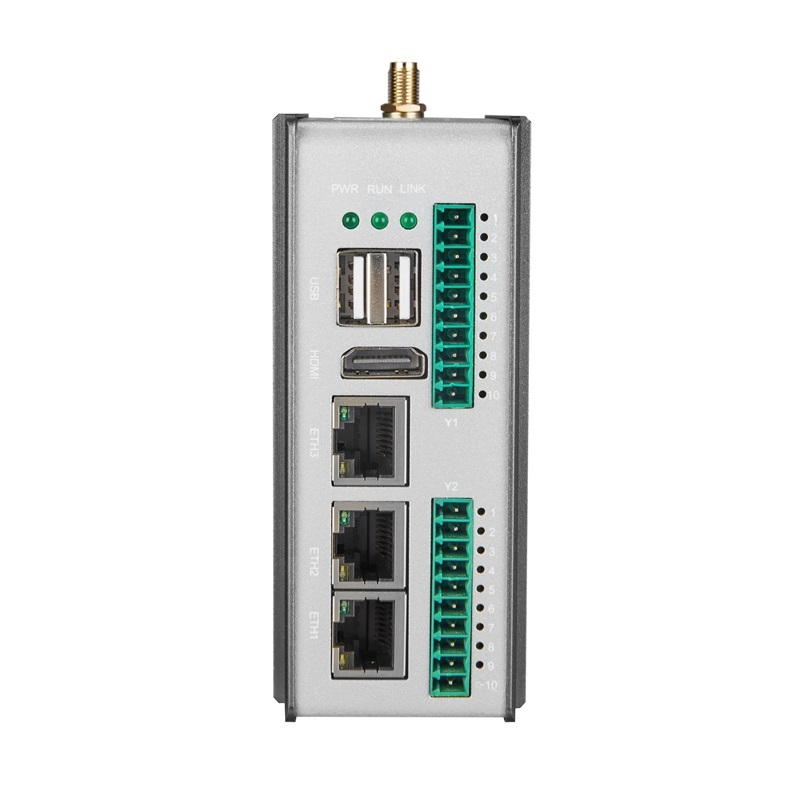

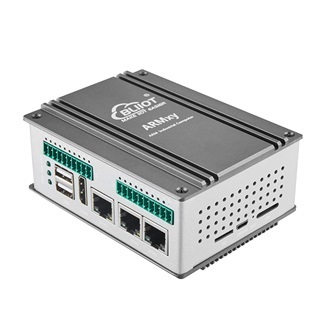

Codesys, as a powerful industrial automation development platform, combined with the ARM Based SBC ARMxy series ARM industrial computers, provides an efficient, flexible, and reliable solution for the industrial automation field. The ARMxy series is designed with high-performance ARM processors, offering rich interfaces and strong computing capabilities, while Codesys provides a programming environment compliant with the IEC 61131-3 standard and extensive functional support. The combination of the two can meet diverse needs, from simple control to complex automation systems.
High-Performance Hardware Support
The ARM Based SBC ARMxy series industrial computers provides Cortex A7 to quad-core Cortex A76 SoC, enabling efficient handling of complex control algorithms and real-time tasks. Combined with Codesys' real-time control capabilities, it meets the high precision and real-time requirements of industrial automation.
Rich Interfaces and Expandability
The ARM Based SBC ARMxy series offers various interfaces (such as RS232/RS485, CAN, Ethernet, USB, HDMI, etc.) and supports multiple industrial protocols (such as Modbus, CANopen, EtherCAT, etc.). Codesys supports direct integration of these protocols, facilitating communication with various industrial devices, sensors, and actuators.
Flexible Programming Environment
Codesys supports the five programming languages defined by the IEC 61131-3 standard (Ladder Diagram, Function Block Diagram, Structured Text, etc.), allowing developers to choose the most suitable programming method based on their needs. Combined with the high-performance hardware of ARM Based SBC ARMxy, complex control logic and algorithms can be quickly implemented.
Real-Time Control and Multi-Task Processing
Codesys supports Real-Time Operating Systems (RTOS), and combined with the multi-core processors of ARM Based SBC ARMxy, it enables parallel multi-task processing, meeting the requirements for multi-task collaboration and high real-time performance in industrial automation.
Visualization and HMI Development
Codesys includes built-in visualization tools for developing Human-Machine Interfaces (HMIs). The ARMxy series ARM Based SBC supports HDMI output and touchscreen interfaces, allowing HMI applications to run directly without additional HMI hardware, reducing system complexity and costs.
Industrial-Grade Reliability
The ARM Based SBC ARMxy series industrial computers undergo rigorous high/low-temperature testing and electromagnetic interference resistance design, ensuring stable operation in harsh environments ranging from -40℃ to 85℃. Combined with the stability and openness of Codesys, it is suitable for various demanding industrial scenarios.
IoT and Cloud Platform Integration
The ARM Based SBC ARMxy series supports 4G/5G, WiFi, Bluetooth, and other communication modules. Combined with Codesys' IoT capabilities, it enables seamless integration with cloud platforms (such as AWS IoT Core, Alibaba Cloud, Huawei Cloud, etc.), supporting remote monitoring, data analysis, and predictive maintenance.
Industrial Control
Production line automation control
Robotics control and coordination
Motion control and servo drives
Machine Vision and Inspection
Combining the high-performance NPU of ARM Based SBC ARMxy with Codesys' algorithm support to achieve efficient image processing and quality inspection.
Smart Warehousing and Logistics
AGV control
Automated warehousing systems
Energy Management
Smart grid monitoring
Energy storage system (EMS/BMS) control
Building Automation
Smart building control systems
Integration of lighting, HVAC, and security systems
Transportation and Rail Transit
Signal control systems
Train automation control
Smart Manufacturing
Industry 4.0 applications
Internet of Things (IoT) and big data analytics
Hardware Configuration
Select the appropriate ARM Based SBC ARMxy series industrial computer model (e.g., SOM440, SOM441, etc.) and configure interface modules (e.g., X-series IO boards, Y-series IO boards) based on requirements.
Software Environment Setup
Install Codesys Runtime on the ARM Based SBC ARMxy, configure the Real-Time Operating System (RTOS), and necessary drivers.
Program Development
Use the Codesys IDE to develop control logic, supporting multiple programming languages and visualization tools.
Debugging and Simulation
Utilize Codesys' simulation features for program debugging to ensure logical correctness and real-time performance.
Deployment and Operation
Deploy the program to the ARMxy industrial computer and conduct testing and optimization with actual equipment.
Remote Monitoring and Maintenance
Use Codesys' remote access tools (e.g., BLRAT) and ARM Based SBC ARMxy's communication modules to achieve remote monitoring and maintenance.
The combination of Codesys and the ARMxy series ARM industrial computers (ARM Based PC) provides a high-performance, flexible, and reliable solution for the industrial automation field. The hardware advantages of ARMxy and the software capabilities of Codesys complement each other, meeting diverse needs from simple control to complex automation systems. Whether for industrial control, machine vision, smart manufacturing, or IoT applications, the combination significantly enhances system efficiency, reliability, and scalability.
