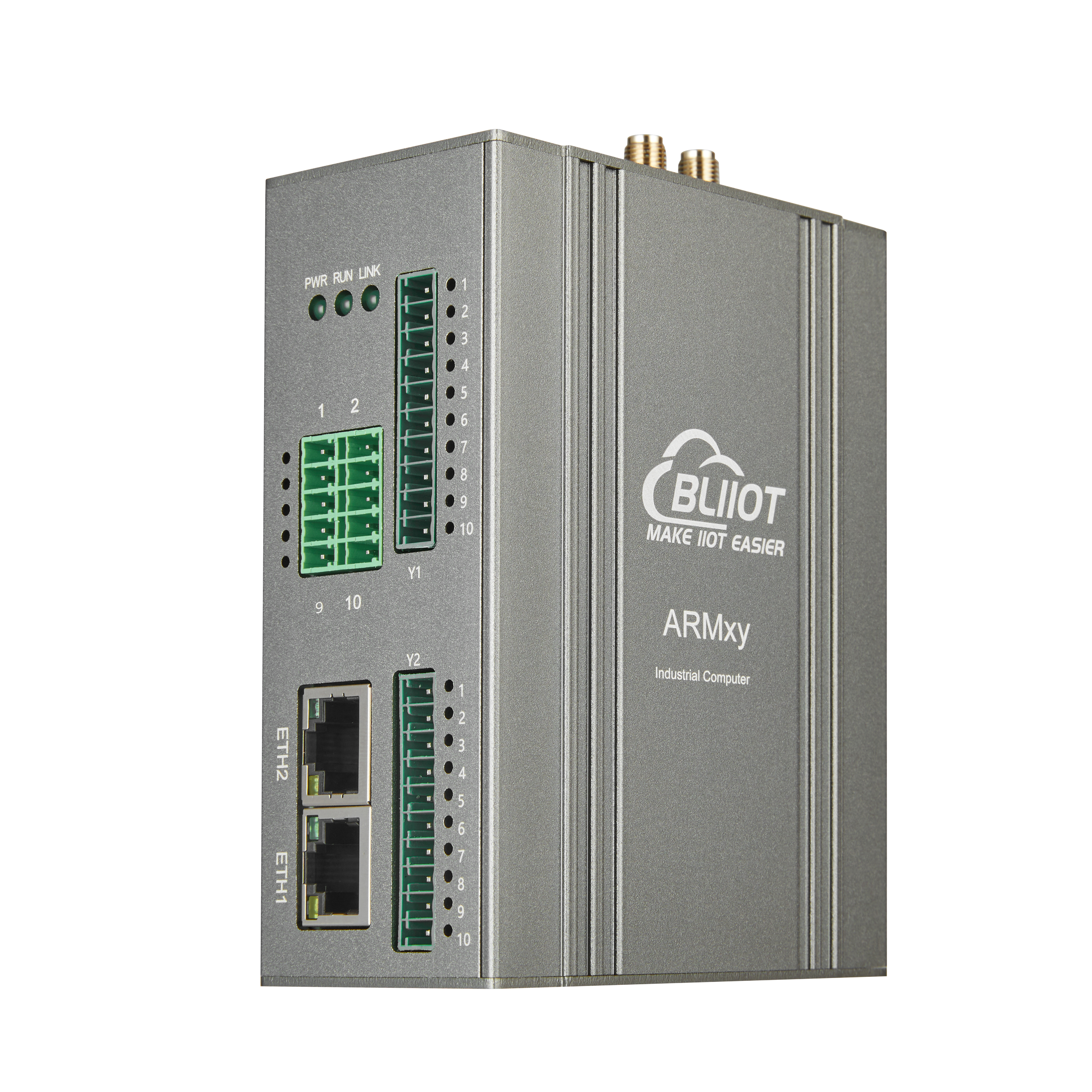

Name: Dual Core A7 Allwinner T113-i ARM Embedded Industrial Computer
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: BL335
Availability: InStock
Rating: 5 (1 reviews)

No.BL335

The ARMxy series BL335 Series ARM Edge Computing Gateway is an industrial-grade ARM Mini ARM PC controller with flexibly configurable SoM and I/O ports. It is a cost-effective industrial-grade computer based on the Allwinner Technology T113-i dual-core ARM Cortex-A7 + Xuantie C906 RISC-V + HiFi4 DSP heterogeneous multi-core processor.
The ARM Cortex-A7 processor operates at a high frequency of up to 1.2GHz. It can be used in applications such as Industrial IoT gateways, industrial edge computing, industrial control, charging stations, and smart terminals.

Get A Quote

Description
Product Selection

ARMxy BL335

Industrial IoT Embedded Computer for Next-Generation Automation

Allwinner T113-i Chip

High Performance

Flexible I/O

Industrial Reliability

IoT Ready

Core Specifications

High-performance hardware for industrial IoT applications

Processor

Allwinner T113-i, 22nm process

2×ARM Cortex-A7 up to 1.2GHz

1×HiFi4 DSP up to 600MHz

1×Xuantie C906 RISC-V (64-bit)

Memory & Storage

RAM: 256MB/512MB/1GB DDR3

Storage: 4GB/8GB eMMC

Expandable via SD card

Connectivity

2×100Mbps Ethernet ports

2×USB 2.0 HOST interfaces

Mini PCIe for Wi-Fi/4G modules

Micro USB debug port

I/O Expansion

1 X-series I/O board slot

1-2 Y-series I/O board slots

Supports RS485, CAN, RS232, GPIO

DI/DO, AI/AO, RTD, TC support

Video Processing

Encoder: JPEG/MJPEG 1080p@60fps

Decoder: H.265 4K@30fps

H.264 4K@24fps

Multiple format support

Power & Installation

Rated DC 24V (12-24V wide range)

Reverse polarity protection

DIN35 rail mounting

Dimensions: 110×83×46mm

Module Combinations

°C Operating Temp

Mbps Network Speed

K Video Resolution

Key Features

Designed for industrial IoT and automation

Multi-OS Support

Supports Linux-5.4.61, Linux-RT-5.4.61 kernel, and Ubuntu 20.04 operating systems with highly extensible system design for optimized data transfer between devices.

Graphical Development

Built-in Node-Red graphical development tool with intuitive interface, reducing learning curve and accelerating IoT solution development.

Protocol Conversion

BLIoTLink industrial protocol conversion software supports Modbus, PLC, BACnet, IEC104, MQTT, OPC UA and integrates with major IoT/SCADA platforms.

Remote Management

BLRAT remote access tool enables secure remote operation and maintenance. Supports Docker, Python, C#, MySQL, SQLite for flexible development.

Application Areas

Ideal for various industrial IoT scenarios

Industrial Control

Photovoltaic Generation

Data Collection

Edge Computing

Smart Devices

Rail Transit

Energy Storage

IoT Gateway

Model Configuration

Choose the right configuration for your application

Model	Ethernet	USB	X-board Slot	Y-board Slots	Dimensions
BL335	2×100M	2	2×5PIN	0	46×83×110mm
BL335A	2×100M	2	2×5PIN	1	46×83×110mm
BL335B	2×100M	2	2×5PIN	2	46×83×110mm

Naming Convention

Example: BL335-SOM336-X1 - 2 Ethernet ports, 2 USB 2.0, X-board: 2x5PIN, no Y-board; SOM336 indicates eMMC 4GB, DDR3 256MB, wide temperature range -20~70℃; X1 indicates X-board functions include 4 RS485 ports.

Wireless Options: Add "W" for Wi-Fi module (BL335W), add "L" for 4G module (BL335L)

ARMxy BL335 Configuration Tool

Configure your industrial IoT embedded computer in 5 simple steps

Main Unit

SOM Board

X-Board

Y-Board(s)

Wireless

Select Main Unit

Choose the base model that fits your application needs

BL335

Basic model with no Y-board slots. Perfect for applications requiring only X-series I/O expansion.

Ethernet Ports: 2 × 100M

USB Ports: 2 × USB 2.0

Y-board Slots: 0

BL335A

Standard model with one Y-board slot. Ideal for applications requiring moderate I/O expansion.

Ethernet Ports: 2 × 100M

USB Ports: 2 × USB 2.0

Y-board Slots: 1

BL335B

Advanced model with two Y-board slots. Maximum I/O expansion for complex industrial applications.

Ethernet Ports: 2 × 100M

USB Ports: 2 × USB 2.0

Y-board Slots: 2

Select SOM Board

Choose memory, storage, and temperature grade for your application

SOM332

Entry-level configuration with wide temperature range. Suitable for basic industrial applications.

RAM: 256MB DDR3

Storage: 4GB eMMC

Temperature: -40~85℃

SOM333

Balanced performance with moderate memory. Ideal for most industrial IoT applications.

RAM: 512MB DDR3

Storage: 4GB eMMC

Temperature: -40~85℃

SOM334

Increased storage capacity. Perfect for data-intensive applications requiring more local storage.

RAM: 512MB DDR3

Storage: 8GB eMMC

Temperature: -40~85℃

SOM335

High-performance configuration. Designed for demanding applications requiring maximum memory.

RAM: 1GB DDR3

Storage: 8GB eMMC

Temperature: -40~85℃

SOM336

Standard temperature range. Cost-effective solution for controlled industrial environments.

RAM: 256MB DDR3

Storage: 4GB eMMC

Temperature: -20~70℃

Select X-series I/O Board

Choose communication interfaces for your application

Select Y-series I/O Board(s)

Choose analog/digital I/O modules based on your selected main unit

Important Note

When Y63 is selected, you cannot select a second Y-series I/O board. The system has automatically cleared the second Y-board selection.

Select Wireless Module

Add wireless connectivity to your configuration (optional)

No Wireless

Use wired connectivity only. No additional cost.

Wi-Fi Module

Adds "W" to model number. Enables wireless LAN connectivity.

4G/LTE Module

Adds "L" to model number. Enables cellular connectivity.

Configuration Complete

Your Custom ARMxy BL335 Model:

BL335-SOM336-X1

Main Unit

BL335

No Y-board slots

SOM Board

SOM336

256MB RAM, 4GB eMMC, -20~70℃

X-series Board

4 RS485 ports

Y-series Board(s)

None

No Y-boards selected

Wireless Module

None

Wired connectivity only

Total Configuration

1 Product

Ready for industrial IoT deployment
