Name: EdgePLC Cortex-A76 AI Industrial Edge Controller BL245 Series
Brand: ARMxy SBC, Industrial ARM SBC, ARM-based SBC, ARM Based Edge Gateways,
SKU: BL245 Series
Availability: InStock
Rating: 5 (1 reviews)

No.BL245 Series

BL245 is high‑performance ARM‑based AI edge controller with 6 TOPS NPU, octa‑core CPU (4×Cortex‑A76 + 4×Cortex‑A55), supports up to 32 N‑series I/O modules, 8K video, and a rich AI vision stack(YOLOv5/8 + OpenCV)

Processor

Rockchip RK3588J

SoC

4*Cortex A76+4*Cortex A55

RAM

2/4/8/16GB

ROM

16/32/64/128GB

I/O Ports

Optional

Get A Quote

Description
Product Selection

Core Features

6 TOPS NPU, octa‑core CPU, 8K video, and modular I/O

High‑performance AI Processor

Rockchip RK3588J/RK3588 (8nm, 64‑bit)
4× Cortex‑A76 + 4× Cortex‑A55, up to 2.4 GHz
Dedicated NPU: 6 TOPS, supports INT4/8/16, FP16/BF16/TF32
Mali‑G610 MP4 GPU, dual ISP (48MP), 8K video decode / 8K encode
4/8/16 GB LPDDR4X, 32/64/128 GB eMMC

Rich I/O & Distributed Expansion

2× Gigabit Ethernet + 1× 100M (BL245A)
2× USB 3.1 (5 Gbps), 1× HDMI 2.1 (BL245A, 8K@60fps)
M.2 NVMe (2230/2242), Mini PCIe for Wi‑Fi/4G/5G

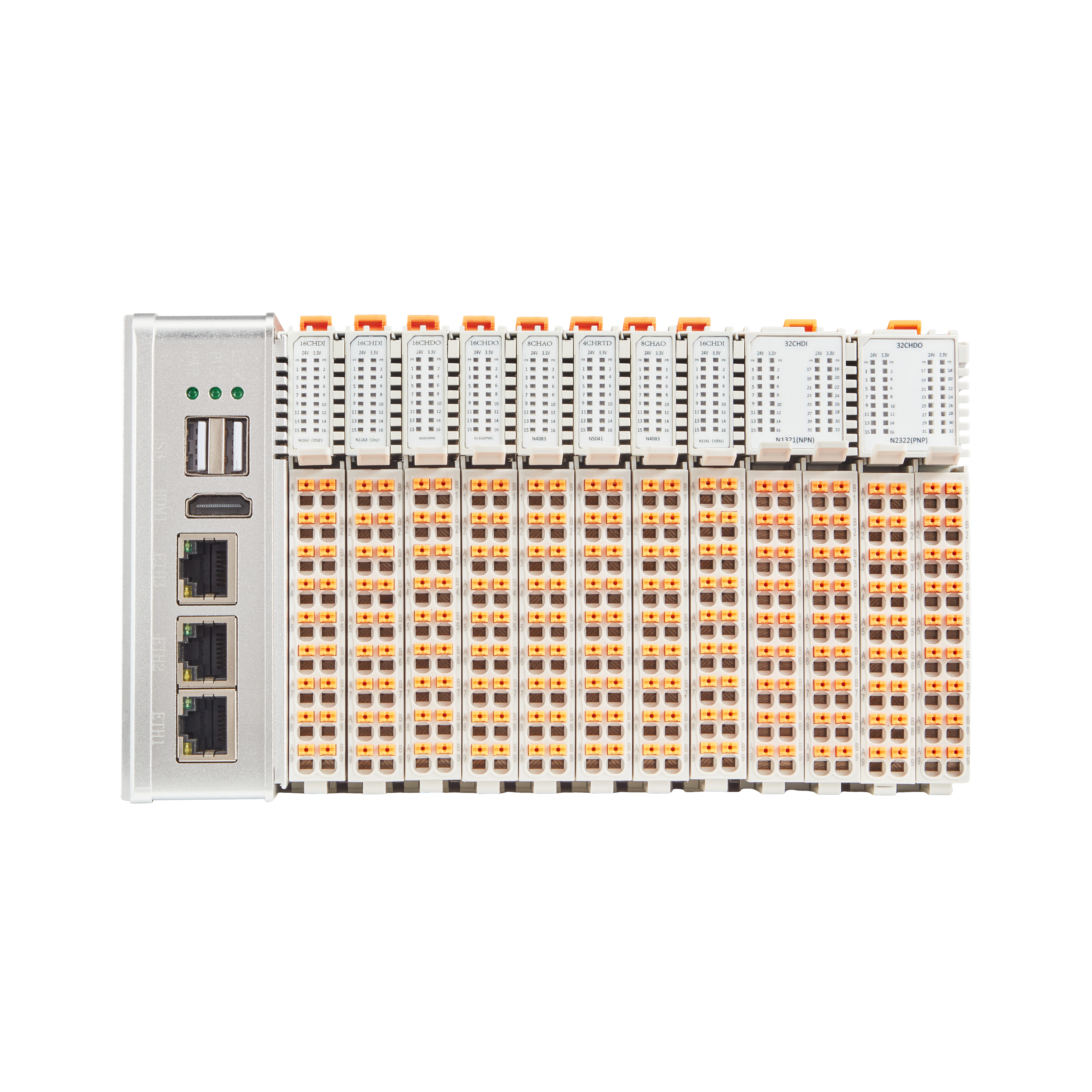

Supports up to 32 N‑series I/O modules (DI/DO, AI/AO, RTD, TC, PWM)
2× RS485 (X90) or 1× RS485 + 1× CAN‑FD (X91 option)

Intelligent Software & AI Ecosystem

Ubuntu 20.04 / EdgePLC‑OS (Linux‑RT 5.10)
OpenPLC, NexPLC, CODESYS Runtime (IEC 61131‑3)
IGH EtherCAT master, Node‑RED, Docker & K3s
YOLOv5/8 + OpenCV, TensorFlow Lite, PyTorch Mobile
BLRAT remote access, QuickConfig, BLIoTLink

Industrial‑grade Reliability

ESD, EFT, Surge immunity (level 3 per IEC 61000‑4)
-40°C to +85°C industrial temperature (RK3588J)

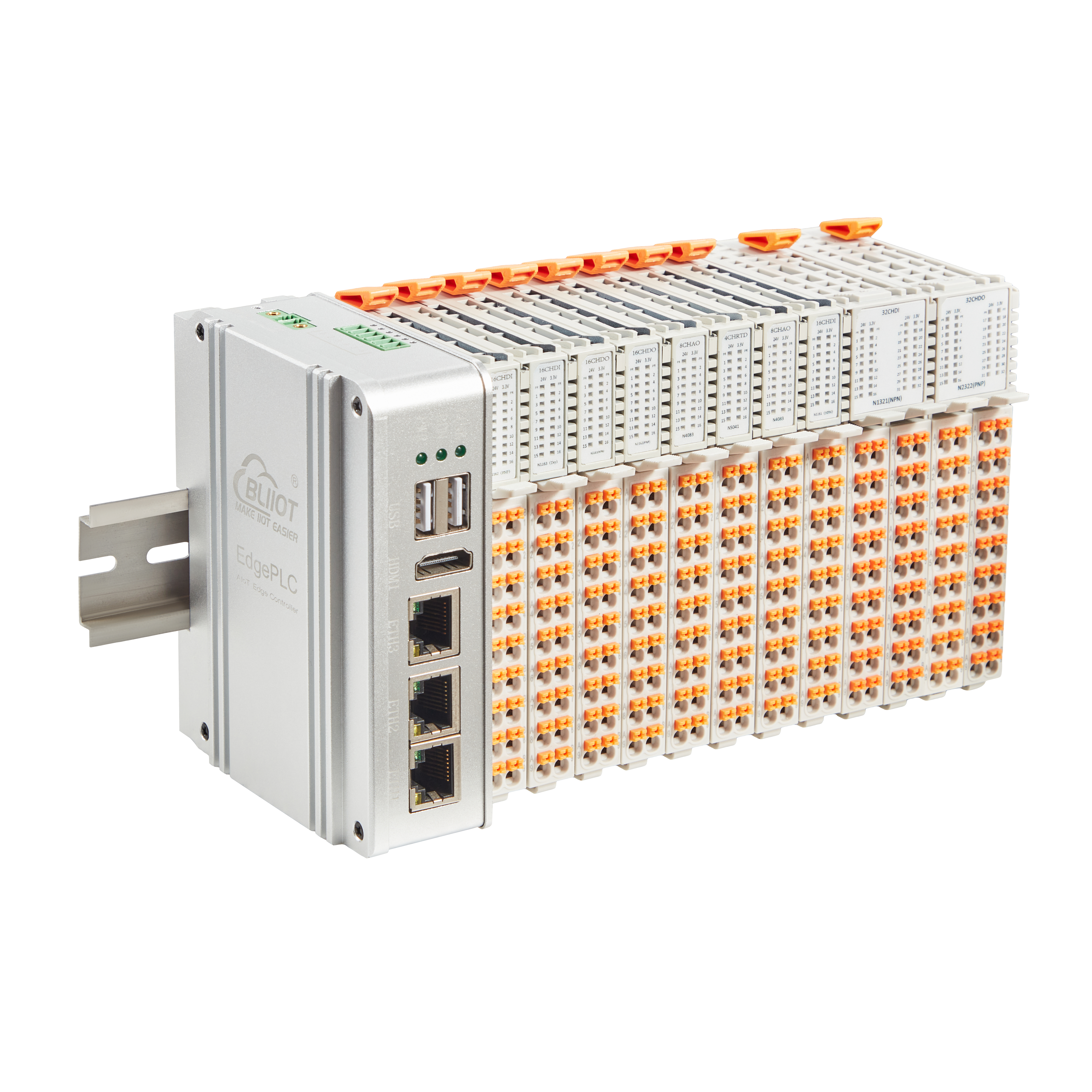

DIN35 rail mounting, IP30 protection
Independent hardware watchdog, reverse polarity protection
Vibration / shock tested per GB/T 2423

Key Specifications Snapshot

AI performance and flexibility at the edge

TOPS

NPU AI Compute

Max I/O Modules

eMMC Storage

LPDDR4X

Software Version Options

Choose the runtime that fits your control & AI strategy

Lite Edition

OpenPLC

Ubuntu 20.04 + OpenPLC
IEC 61131-3 (ST, LD, FBD)
Lightweight & open source
Ideal for simple logic control
No motion control

Standard Edition

NexPLC

NexPLC integrated platform
Cloud‑edge collaboration
Built‑in BLIoTLink, Node‑RED
Remote OTA & monitoring
YOLOv5/8 + OpenCV available

Professional Edition

CODESYS

CODESYS Runtime (IEC 61131-3)
SoftMotion / CNC & Robotics (option SM/CR)
EtherCAT master IGH
Advanced motion control
Full AI stack (TensorFlow Lite, PyTorch Mobile)

Typical Applications

From AI vision to real‑time control

AGV / Robotics

Visual navigation, obstacle detection, motion control

Machine Vision

YOLO‑based object detection, quality inspection, OCR

Energy Storage (EMS/BMS)

Battery monitoring, predictive maintenance

PV & Inverter Control

Power optimization, anomaly detection

Edge AIoT Gateway

Data fusion, protocol conversion, local inference

Rail Transit

Signal control, passenger counting, condition monitoring

Quality & Reliability

Certified for harsh industrial environments

EMC Compliance

GB/T 9254 / CISPR 32 Class A
ESD level 3 (contact ±6kV, air ±8kV)
EFT level 3 (power 2kV, signal 1kV)
Surge level 3 (diff. 2kV, common 4kV)
Voltage dips / interrupts tested

Environmental Tests

-40°C cold start & +85°C high temp run (RK3588J)
Damp heat 40°C, 85% RH for 48h
Sinusoidal vibration 5‑500Hz, 2g
Free fall 0.8m (packaged)
IP30 protection

Software & Support

Preinstalled BLIoTLink, BLRAT, QuickConfig
Ubuntu file system & kernel source (Linux 5.10)
Complete AI examples: YOLOv5/8, OpenCV, TensorFlow Lite
Docker & K3s ready, long‑term maintenance
SDK, demo programs, and professional support

Start Your EdgePLC BL245 AI Project

The BL245 series combines 6 TOPS AI acceleration, real‑time control, and modular I/O in a rugged industrial controller. Ideal for AI‑driven automation, robotics, and smart energy.

Configuration Tool
Contact Technicial Support

EdgePLC BL245 AI Edge Controller Configurator

Configure your industrial AI edge controller in 5 simple steps (up to 32 N‑Series I/O boards)

Main Unit

SOM Board

Serial Board

N‑Series I/O

Wireless+Software

Select Main Unit

Choose base model by Ethernet ports and HDMI

BL245

2x Gigabit Ethernet, no HDMI, supports up to 32 N‑Series I/O modules

Ethernet:2 x 10/100/1000M

USB:2 x USB 3.1

HDMI:No

Max N‑boards:32

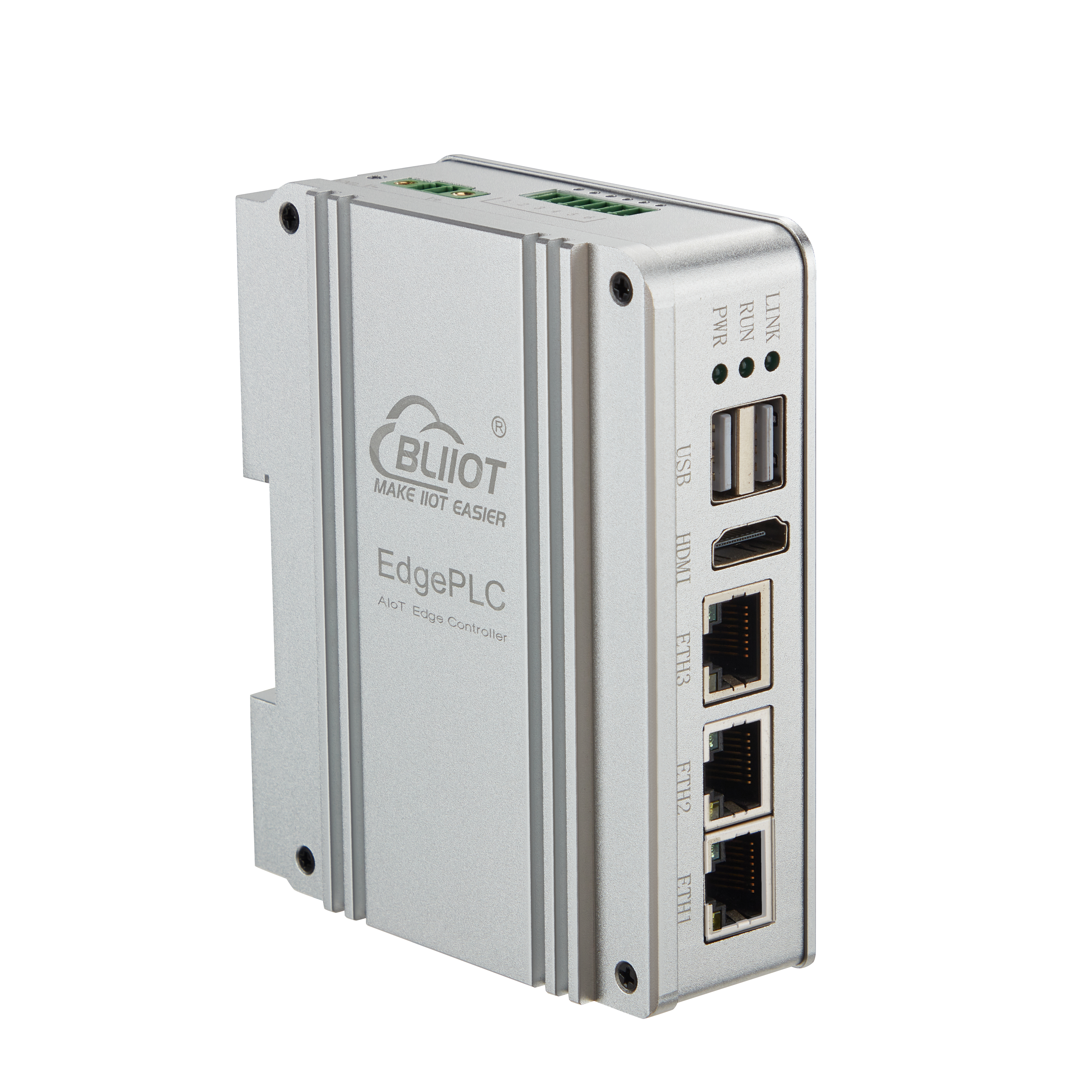

BL245A

2x Gigabit + 1x Fast Ethernet, HDMI 2.1, supports up to 32 N‑Series I/O

Ethernet:2xGbE + 1x100M

USB:2 x USB 3.1

HDMI:1 x HDMI 2.1

Max N‑boards:32

Select SOM Board

Memory, storage, temperature grade (all with 6TOPS NPU)

SOM450

Industrial -40~85℃, RK3588J, 32GB eMMC, 4GB RAM

MCU:RK3588J

NPU:6 TOPS

RAM:4GB LPDDR4X

eMMC:32GB

Temp:-40~85℃

SOM451

Industrial, RK3588J, 64GB eMMC, 8GB RAM

MCU:RK3588J

NPU:6 TOPS

RAM:8GB LPDDR4X

eMMC:64GB

Temp:-40~85℃

SOM452

Industrial, RK3588J, 128GB eMMC, 16GB RAM – max performance

MCU:RK3588J

NPU:6 TOPS

RAM:16GB LPDDR4X

eMMC:128GB

Temp:-40~85℃

SOM453

Commercial 0~80℃, RK3588, 64GB eMMC, 4GB RAM

MCU:RK3588

NPU:6 TOPS

RAM:4GB LPDDR4X

eMMC:64GB

Temp:0~80℃

SOM454

Commercial 0~80℃, RK3588, 64GB eMMC, 8GB RAM

MCU:RK3588

NPU:6 TOPS

RAM:8GB LPDDR4X

eMMC:64GB

Temp:0~80℃

Select Serial Board

X90: 2xRS485 (default, not shown in model)

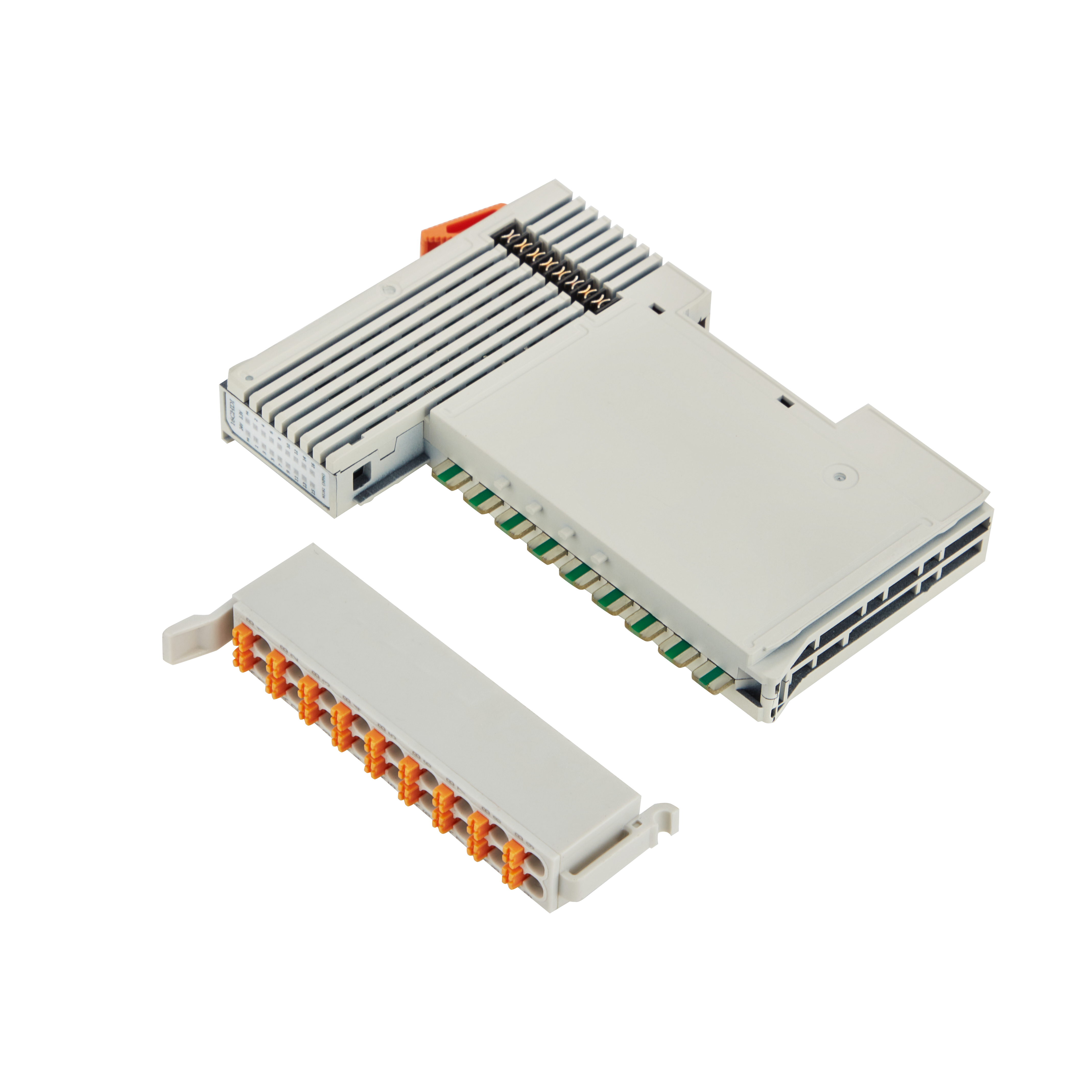

Select N‑Series I/O Modules

Up to 32 modules – each can be set to "None" to skip (models not shown in final part number)

Wireless & Software

Configure wireless, software version and motion control

Wireless Module

None

Wired only

Wi‑Fi

2.4G/5G Wi‑Fi module

4G/LTE

Cellular with SIM slot

5G

High‑speed 5G module

Software Version

Lite

Ubuntu + OpenPLC

STA

NexPLC standard

Pro

CODESYS professional

Configuration Complete

Your custom BL245 model:

BL245-SOM450-Lite

Main Unit

BL245

2xGbE, no HDMI

SOM

SOM450

RK3588J, 4GB,32GB,-40~85℃,6TOPS

Serial Board

X90

2 x RS485

N‑Series I/O

None

No N‑boards selected

Wireless

None

Wired only

Software/Motion

Lite

OpenPLC
