SCADABR is a free, open-source SCADA (Supervisory Control and Data Acquisition) system software designed for developing monitoring systems, equipment automation, data acquisition, and remote control. It encompasses all functionalities of traditional SCADA systems. SCADABR features a data acquisition engine with over 20 communication protocols and allows users to create graphical overview screens directly from a browser.
Based on existing information, SCADABR is open-source, meaning users can freely access and modify its code. It supports multiple functionalities such as data acquisition, monitoring, and control, along with detailed manuals (e.g., in French and English) for reference.
Intuitive Interface: SCADABR provides user-friendly data visualization in tables, graphs, and overview screens.
Communication Protocols: Supports over 20 protocols, including Modbus RTU, Modbus TCP, Modbus RTU over TCP, MQTT, HTTP, SQL, DNP3, and more.
User Management: Define permissions for each user, specifying accessible data points and read/write privileges.
Historical Reporting: Stored data can be queried and exported as HTML reports or CSV files. Users can create routines and receive reports via email.
Process Automation: Schedule events to execute actions, interact with processes, or run scripts based on point values.
Email/SMS Alerts: Set thresholds for alarms; real-time notifications are sent via email or SMS when issues arise.
Water Supply Management:
CASAN uses SCADABR to monitor real-time flow and pressure for leak detection and water shortage alerts. It generates reports and charts to aid in loss mitigation and tracks minimum night flow as a key indicator of losses.
Room Automation:
Automates classroom systems (lighting, AC, projectors) and monitors window status (open/closed). SCADABR enables scheduled activation and shutdown of devices.
Wind Turbine Monitoring:
Developed for Recriar Tecnologias, a Brazilian power solutions provider, SCADABR integrates wind turbine operations with control centers, enabling distributed generator management.

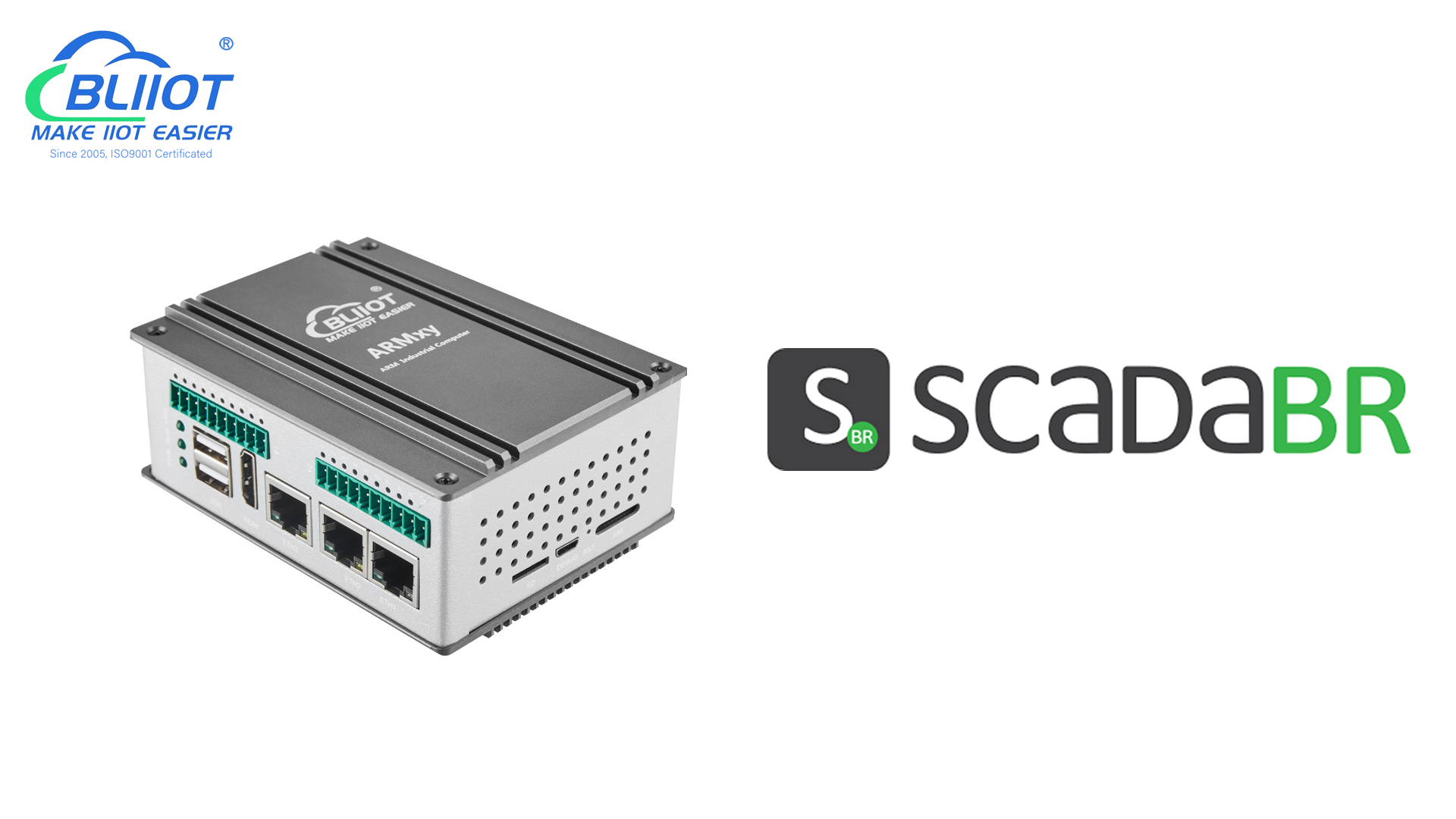

ARMxy SBC BL410, based on ARM architecture, are widely used in embedded systems and industrial automation due to their low power consumption and compact size. Combining ARMxy with SCADABR enhances industrial automation capabilities:
Cost-Effective: ScadaBR is free and open-source; ARMxy controllers are affordable.
High Flexibility: ARM compatibility ensures easy deployment in diverse industrial environments.
Real-Time Monitoring: Modbus protocols enable real-time data exchange with ARMxy controllers.
Lightweight & Efficient: ScadaBR’s low resource usage suits ARMxy’s limited computational power.
Customizable: Open-source code allows modifications to meet specific ARMxy controller requirements.
SCADABR paired with ARMxy SBC BL410 offers significant advantages for industrial automation, including cost efficiency, flexibility, real-time monitoring, lightweight performance, and customization. These features make it ideal for budget-conscious small-to-medium projects or embedded applications. Users can leverage the latest installation scripts and community resources for rapid deployment and stable operation.
