ARM Embedded Controller-based electrical fire monitoring system offers high reliability, low power consumption, intelligence, and seamless connectivity.
Case Details
Electrical fires are a primary cause of building fire incidents, often triggered by circuit overload, insulation aging, poor contact, or leakage. Traditional manual inspections are inefficient and prone to missed or delayed alarms. With advancements in IoT and smart technologies, electrical fire monitoring systems based on ARM controllers have become an industry trend, significantly enhancing safety and response efficiency.
System Architecture

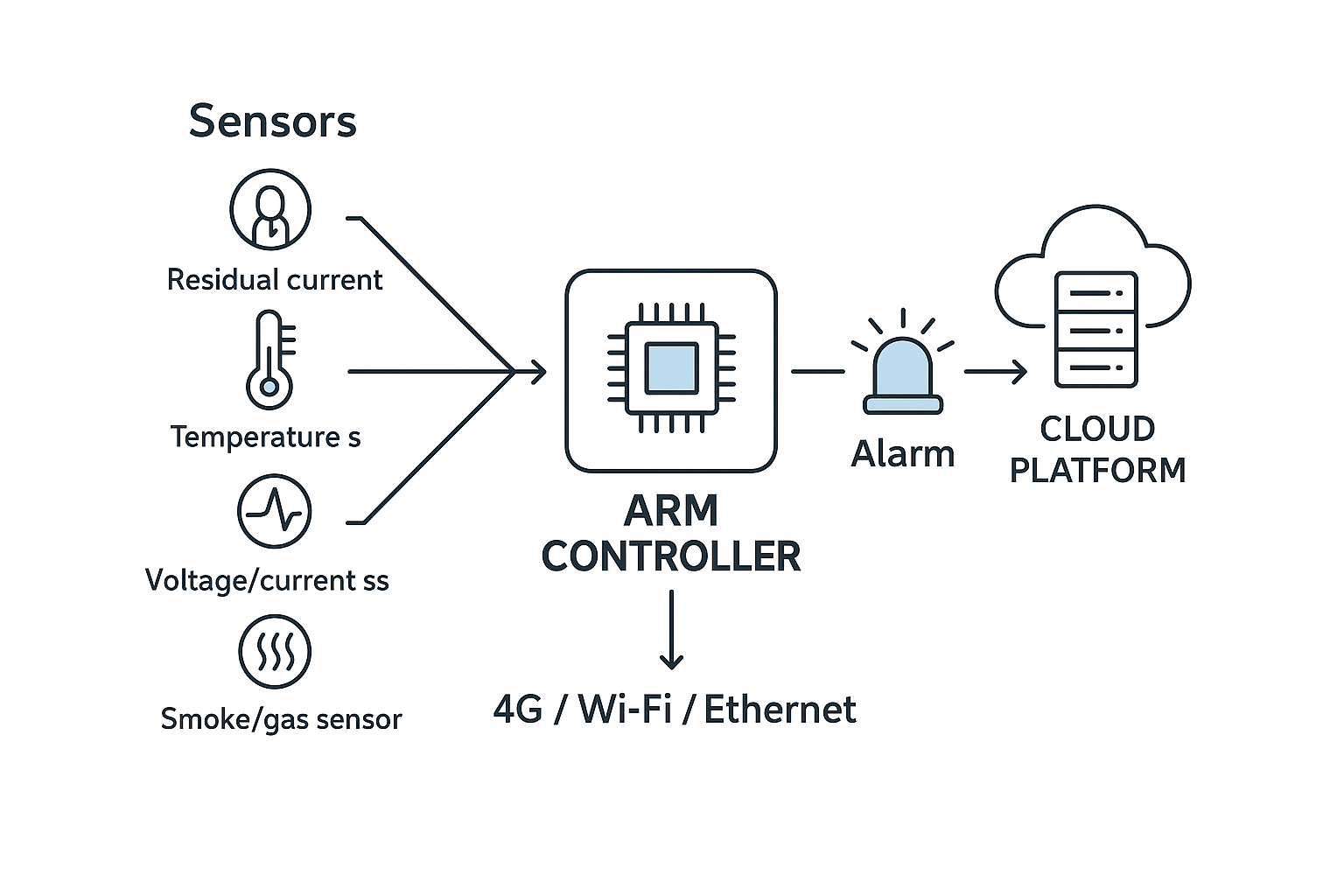

The ARM Embedded controller BL340 serves as the core, connecting various sensors to collect and process data in real time. The system comprises the following components:
Sensor Layer
- Residual Current Sensor: Detects electrical leakage
- Temperature Sensor: Monitors cable joints and distribution cabinet temperatures
- Voltage/Current Sensor: Identifies overload and short-circuit conditions
- Smoke/Gas Sensor: Detects early signs of fire
ARM Embedded Controller BL340 Layer
- Data Acquisition: Collects sensor data via RS485/Modbus or analog interfaces
- Edge Computing: Processes data locally, sets threshold alarms, and identifies abnormal trends
- Storage and Transmission: Stores historical data and uploads it to the monitoring platform via 4G/WiFi/Ethernet
Communication and Platform Layer
- Local Alerts: Supports audible-visual alarms, SMS, or APP notifications
- Remote Platform: Enables centralized monitoring via SCADA or cloud platforms
- Big Data Analysis: Facilitates long-term trend analysis and predictive maintenance
Key Features
- Real-Time Monitoring: Millisecond-level response for rapid detection of anomalies
- Multi-Dimensional Monitoring: Simultaneously tracks leakage, current, voltage, and temperature
- Edge Intelligence: ARM controller enables local computing, functioning independently during network outages
- Remote Maintenance: Supports remote parameter configuration and firmware updates, reducing manual inspections
- Event Traceability: Stores historical data for incident analysis and accountability
Application Scenarios
- Distribution Rooms/Cabinets: Monitors critical loads and circuits
- Commercial Buildings: Enhances fire safety in malls, hotels, and office buildings
- Industrial Parks: Reduces electrical fire risks in high-load workshops
- Residential Communities: Ensures smart and safe electricity usage in centralized environments
Conclusion
The ARM controller-based electrical fire monitoring system offers high reliability, low power consumption, intelligence, and seamless connectivity. It not only provides early fire warnings but also supports fault diagnosis and safety assessments, serving as a critical safeguard for the safe operation of smart cities and intelligent buildings.
