ARM Industrial Controllers in Heat Pump Monitoring and Intelligent Control

Heat pump systems are gaining widespread adoption due to their high energy efficiency and low-carbon emissions. They are extensively used in industrial heating, commercial buildings, district energy stations, and integrated renewable energy systems. However, the complexity of heat pump systems and their long operational cycles demand enhanced real-time monitoring, stable control, and remote maintenance capabilities.

ARM-based industrial controllers are emerging as the core equipment for heat pump monitoring and intelligent control systems.

Challenges in Monitoring and Control for Heat Pump Systems

In practical applications, heat pump systems often face the following issues:

• Coexistence of multiple sensors with diverse signal types
• Requirement for 7×24-hour continuous stable operation
• Need for ongoing calculation and optimization of energy efficiency metrics (COP)
• Delayed fault detection leading to high maintenance costs
• Integration requirements with BMS, EMS, or cloud platforms

Traditional PLCs have limitations in data processing and cloud connectivity, while general-purpose industrial PCs lack advantages in power consumption, reliability, and cost. This creates an ideal application space for ARM industrial controllers.

Technical Advantages of ARM Industrial Controllers

• Flexible Industrial I/O Interfaces ARM industrial controllers support various I/O resource combinations, enabling direct connection to diverse equipment in heat pump systems:

  • Analog inputs/outputs (AI/AO):
    • 4–20 mA, 0–10 V for temperature and pressure transmitters
    • Control of regulating valves and variable frequency drives
  • Digital inputs/outputs (DI/DO):
    • Start/stop and status feedback for compressors, circulation pumps, and fans
  • Industrial communication interfaces:
    • RS485/RS232 (Modbus RTU)
    • CAN/CANopen
    • Ethernet (Modbus TCP)
  • Optional specialized interfaces:
    • RTD (PT100/PT1000)
    • Thermocouple (TC)
    • PWM (for fan and pump speed control)

  Compared to traditional fixed I/O configurations, ARM controllers offer greater flexibility in project adaptation.

• Low Power Consumption and Industrial-Grade Reliability The inherent low-power characteristics of the ARM architecture, combined with industrial-grade design, make it suitable for long-term continuous operation in heat pump systems:

  • Fanless design to reduce maintenance
  • Wide temperature operating range for harsh environments
  • Strong resistance to electromagnetic interference
  • Ideal for installation in energy and HVAC equipment cabinets

• Edge Computing and Local Intelligence ARM industrial controllers serve not only as data acquisition devices but also as intelligent edge nodes:

  • Local calculation of COP, energy consumption, and operational efficiency
  • Trend analysis of operating status and anomaly detection
  • Local alarms for over-temperature, over-pressure, or abnormal power consumption
  • Independent execution of control logic during network interruptions

  The combination of "edge computing + local decision-making" significantly improves system reliability.

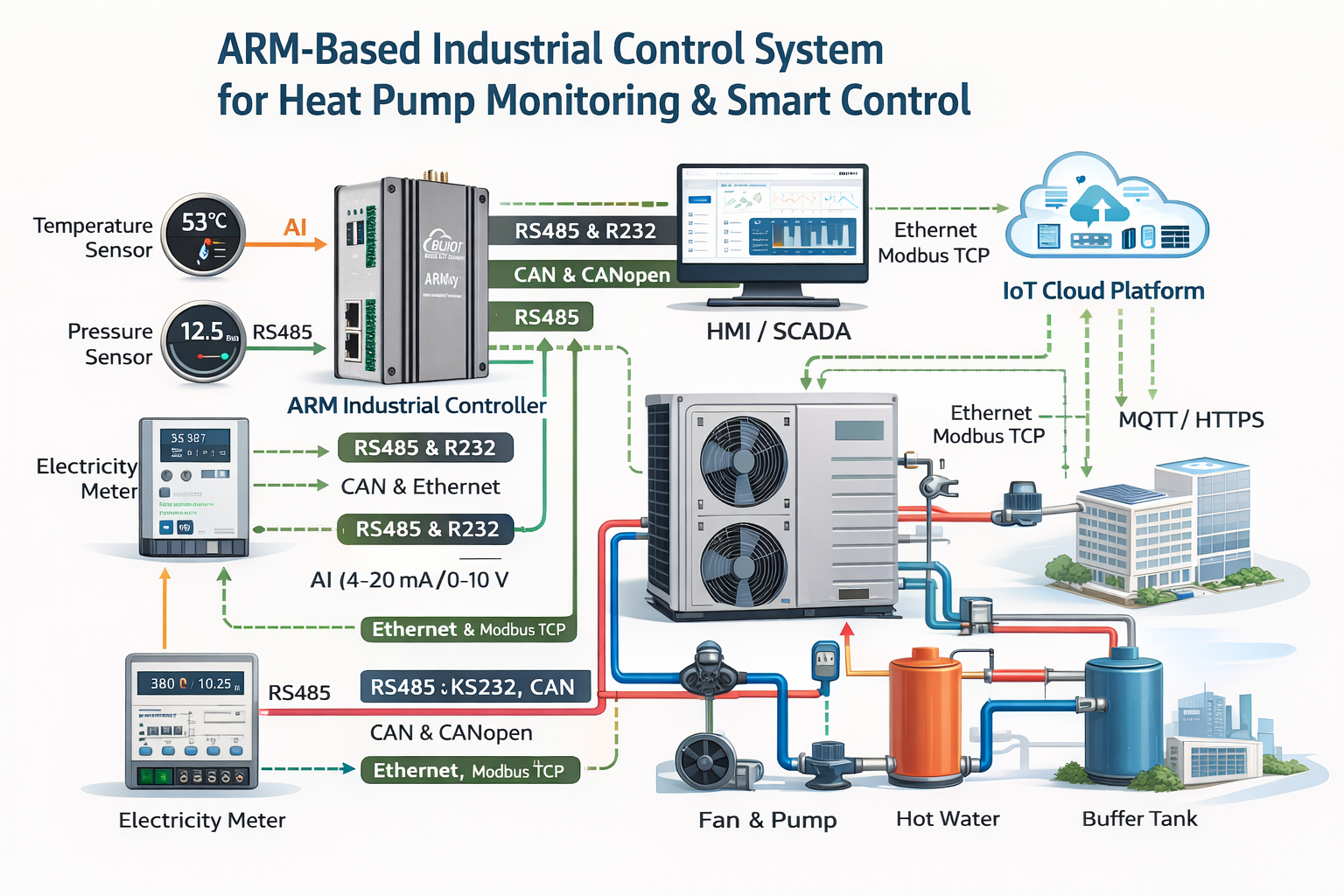

Typical Architecture of Heat Pump Monitoring Systems

In typical applications, the ARM industrial controller is positioned at the system edge:

• Downward connections to temperature, pressure, electricity meters, and actuators
• Upward integration with HMI, SCADA, BMS, or IoT cloud platforms
• Support for protocols such as MQTT, HTTP, and Modbus TCP

This architecture balances real-time performance with system scalability.

Core Functions of ARM Industrial Controllers in Heat Pump Systems

• Real-time data acquisition: Comprehensive coverage of temperature, pressure, and electrical parameters
• Intelligent control strategies: Automatic start/stop and adjustment based on load
• Energy efficiency management: COP calculation, energy consumption statistics, and analysis
• Fault early warning: Proactive anomaly detection to reduce downtime risks
• Remote operations and maintenance: Parameter configuration, program upgrades, and log diagnostics

In large-scale systems, they can also integrate with energy storage, photovoltaics, and other equipment for comprehensive energy management.

Application Value of Beilai Technology's ARM Industrial Controllers

Beilai Technology (Shenzhen Beilai Technology Co., Ltd.), branded as BLIIoT, offers ARM industrial controllers and the ARMxy series, specifically designed for industrial and energy scenarios:

• Optional I/O types: RS485/RS232, CAN, DI/DO, AI/AO, RTD, TC, PWM
• No custom hardware required for adaptation to different heat pump systems
• Support for Linux, Node-RED, CODESYS, and IEC 61131-3
• Suitable for air-source, ground-source, and industrial high-temperature heat pump projects

These solutions help system integrators and equipment manufacturers accelerate implementation and reduce project delivery risks.

Conclusion

As heat pump systems evolve toward digitization and intelligence, ARM industrial controllers—with their flexible I/O, low power consumption, high reliability, and edge computing capabilities—are becoming the ideal choice for monitoring and intelligent control.

In the future, ARM industrial controllers will deeply integrate with cloud platforms, AI algorithms, and comprehensive energy systems, delivering more efficient and intelligent solutions to the heat pump industry.
