Embedded AI Edge Controllers for Smart Manufacturing OEE Monitoring

In the era of smart manufacturing and Industry 4.0, Overall Equipment Effectiveness (OEE) has become a critical metric for assessing production efficiency and equipment utilization. By integrating Availability, Performance, and Quality, OEE helps enterprises identify production bottlenecks and drive continuous improvement. However, achieving fast, accurate, and low-latency OEE data collection and analysis at the production site remains a key challenge for enhancing competitiveness in manufacturing.

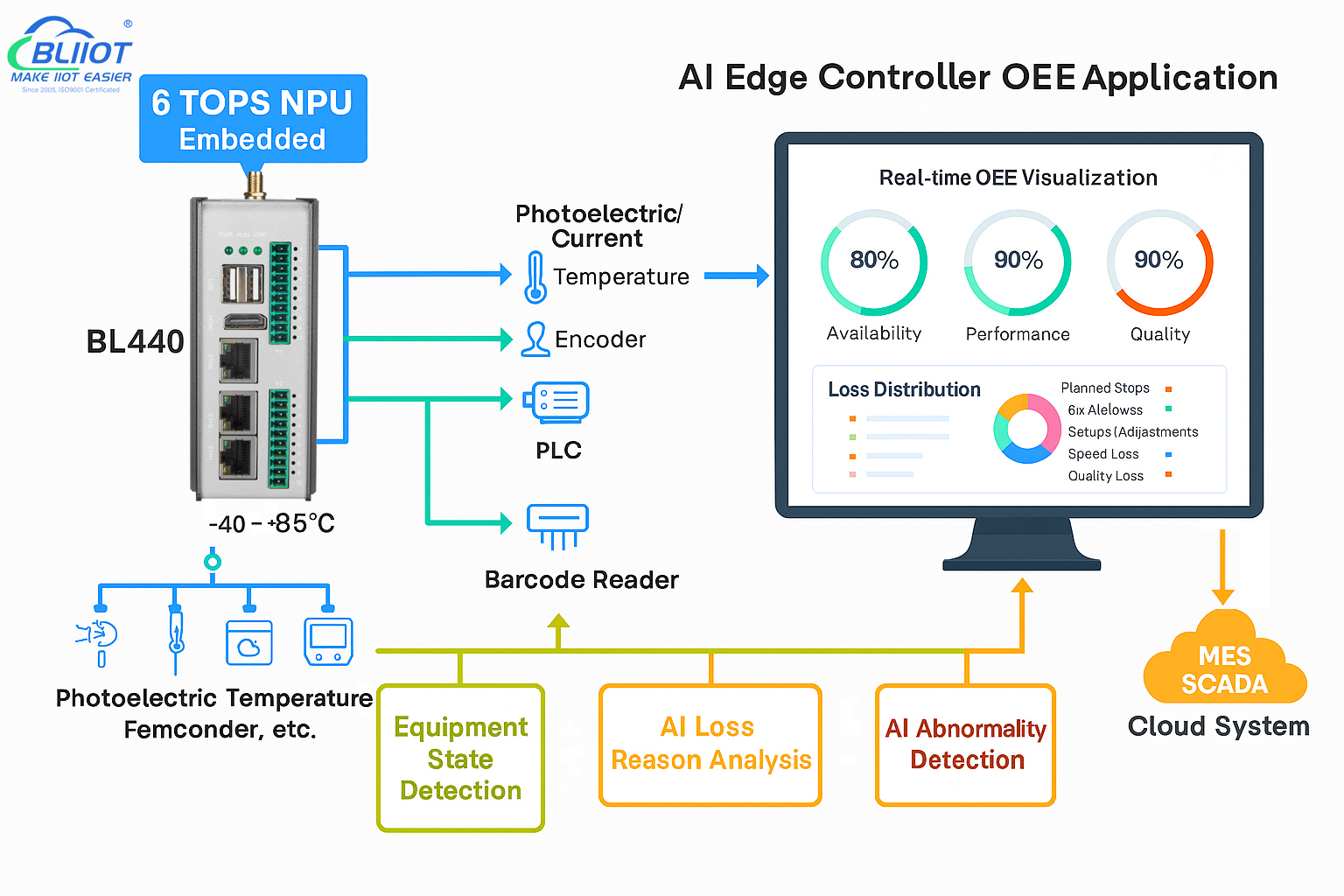

The BL440 embedded AI edge controller addresses this challenge by enabling data acquisition, analysis, and OEE calculation directly at the edge, reducing reliance on cloud systems while improving response speed.

Robust Data Acquisition and Connectivity

The BL440 is equipped with versatile industrial I/O interfaces, allowing seamless integration with various sensors to comprehensively capture equipment status:

• Vibration/Acceleration Sensors (IEPE): Monitor equipment health and detect downtime risks;
• Current/Voltage Sensors (CT/DT): Analyze power consumption and load conditions;
• Temperature/Thermocouples: Assess process stability;
• Encoders/Photoelectric Switches: Track production output and cycle times.

By collecting multidimensional data, the BL440 provides a solid foundation for accurate OEE calculations.

Edge Intelligence for Real-Time OEE Computation

Powered by an integrated AI acceleration engine (NPU), the BL440 performs high-speed data processing and intelligent inference locally, generating real-time OEE metrics:

• Availability: Automatically detects whether equipment is running or stopped, logging downtime duration and causes;
• Performance: Compares actual production cycles with ideal rates to quickly identify efficiency losses;
• Quality: Analyzes vibration, torque, and energy consumption patterns to predict processing defects and reduce defective product risks.

These metrics are instantly available as KPIs at the edge, enabling real-time monitoring and decision-making for operators and management.

Local Closed-Loop Control and Cloud Synergy

The BL440 supports both local closed-loop control and cloud-based collaborative analysis:

• Local Closed-Loop Control: Integrates with PLCs and HMIs via protocols like OPC-UA and Modbus, triggering alarms or control actions upon detecting anomalies to minimize downtime;
• Cloud Synergy: Uploads critical data to MES, ERP, or cloud platforms via MQTT/HTTPS, enabling cross-line comparisons, historical data aggregation, and long-term trend analysis for enterprise-wide optimization.

Application Value and Benefits

Implementing the BL440 edge OEE monitoring solution delivers significant benefits:

• Reduced Unplanned Downtime: Real-time health monitoring and early warnings improve equipment availability;
• Enhanced Production Efficiency: Optimized cycle times reduce performance losses;
• Lower Defect Rates: AI-driven detection of process anomalies ensures product quality;
• Maximized Data Value: Combines rapid edge decision-making with in-depth cloud analysis for continuous improvement.

Real-world applications demonstrate that the BL440 can improve OEE by 5% to 15%, directly translating into increased capacity and economic benefits.

Conclusion

As manufacturing transitions toward intelligence and lean operations, OEE evolves from a retrospective analysis metric to a real-time optimization tool. The BL440 embedded AI edge controller brings AI-powered analysis to the production floor, enabling precise, rapid, and efficient OEE monitoring. It provides robust technical support for enterprises building smart factories.
