Wind Turbine Monitoring and Maintenance Solution with ARM Edge Gateway with IEPE Module

With the rapid growth of global renewable energy, the installed capacity of wind turbines continues to increase. However, wind turbines operate under high loads and complex environments, making them prone to issues such as bearing wear, gearbox failures, rotor imbalance, and blade cracks. These faults not only reduce power generation efficiency but can also lead to turbine downtime or serious safety incidents.

Traditional periodic inspections often fail to detect potential risks in time, while uploading all data to the cloud creates significant bandwidth and storage challenges. Therefore, an intelligent monitoring and maintenance solution based on ARM edge gateways and IEPE vibration monitoring modules has become a key choice for wind turbine operations and maintenance (O&M).

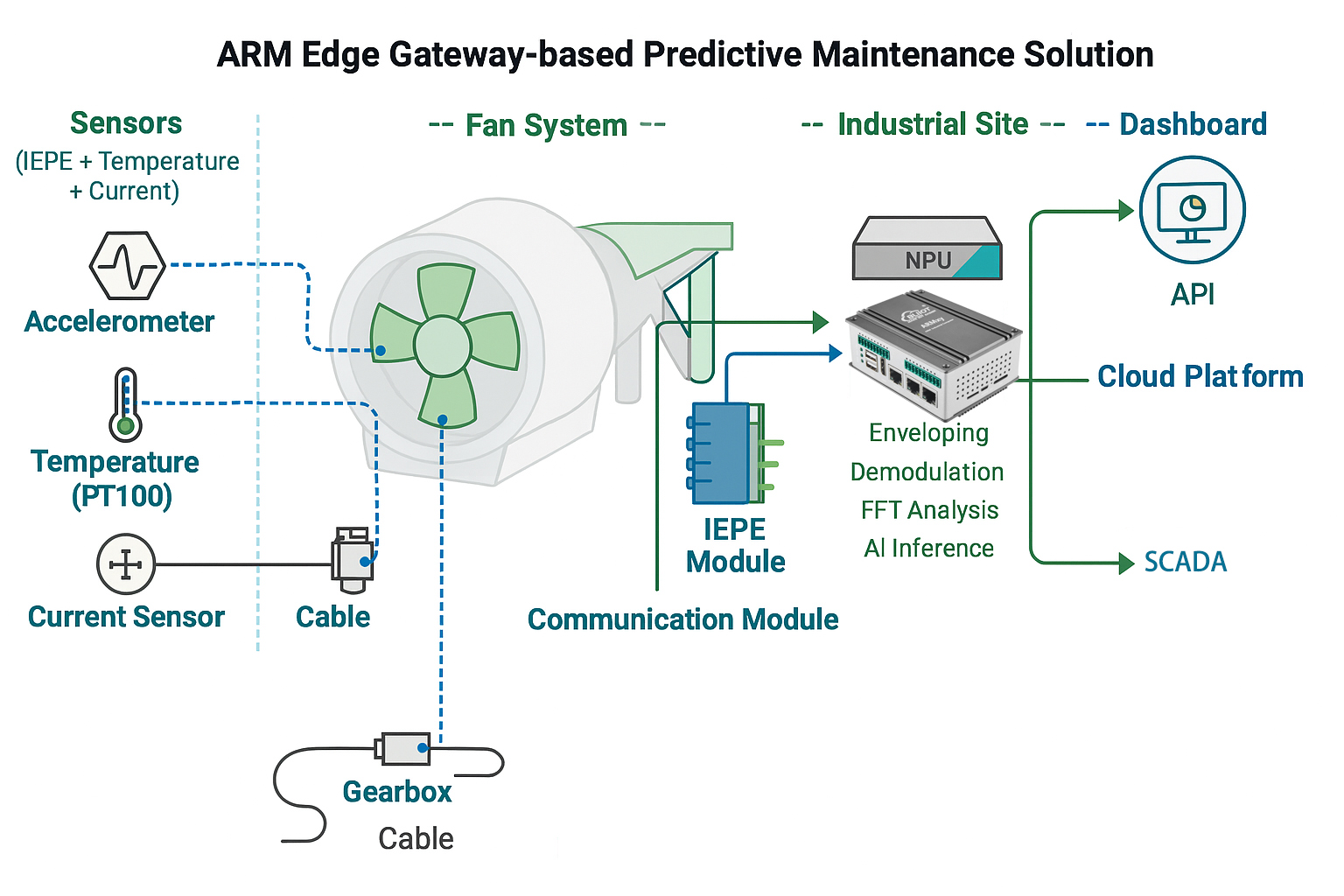

System Architecture

The solution comprises the following core components:

• IEPE Vibration Sensors: Installed at critical components such as the gearbox, generator bearings, and main bearings to collect high-precision vibration signals in real time.
• 24 bits IEPE Module Y37: Provides constant current excitation, amplifying, filtering, and converting analog signals to digital.
• ARM Edge Gateway BL450: Operates on a Linux platform with multi-core processing capabilities, handling data preprocessing (denoising, filtering, FFT, envelope analysis), feature extraction (RMS, Kurtosis, spectral peaks), local threshold-based alerts, and data transmission via MQTT/Modbus/OPC UA protocols.
• Cloud Platform: Performs trend analysis, health assessment, and predictive maintenance modeling on data reported from the edge, supporting remote diagnostics and work order management.

• High-Precision Vibration Monitoring: Supports sampling rates above 20 kHz, capturing high-frequency characteristics of bearing defects and gear meshing anomalies.

• Edge Intelligence Analysis: Runs local algorithms such as FFT, envelope analysis, kurtosis, and RMS to quickly identify fault indicators and trigger alerts.

• Multi-Protocol Compatibility: Supports industrial protocols like Modbus, MQTT, and OPC UA for seamless integration with existing wind farm monitoring systems.

• Predictive Maintenance: Combines cloud-based AI models to assess equipment health and predict faults, guiding planned maintenance.

• Remote Centralized Management: Enables the O&M center to monitor hundreds of turbines simultaneously, supporting unified management across multiple wind farms.

Value Proposition

• Reduced Downtime Losses: Early detection of potential faults in bearings, gearboxes, and generators prevents costly unplanned downtime.

• Optimized O&M Costs: Reduces manual inspections through remote monitoring and automated analysis, lowering labor and maintenance expenses.

• Improved Power Generation Efficiency: Combines vibration status and power curve analysis to optimize turbine operating conditions and increase energy output.

• Extended Equipment Lifespan: Predictive maintenance minimizes over-maintenance and unplanned outages, enhancing equipment reliability and lifecycle.

Application Scenarios

• Wind turbine nacelle monitoring (bearings, gearboxes, generators)

• Centralized management and health diagnostics for remote turbine fleets

• Operational monitoring and O&M optimization for offshore wind turbines

• Integration with intelligent wind farm O&M platforms

Conclusion

The combination of ARM edge gateways BL450 and IEPE vibration monitoring modules Y31 provides a high-precision, locally intelligent, and remotely centralized O&M solution for wind turbines. This solution enables full-chain monitoring from data collection and edge analysis to cloud-based predictions, helping wind energy enterprises reduce O&M costs, enhance power generation efficiency, and ensure operational safety. It serves as a critical technology for smart wind power systems.
